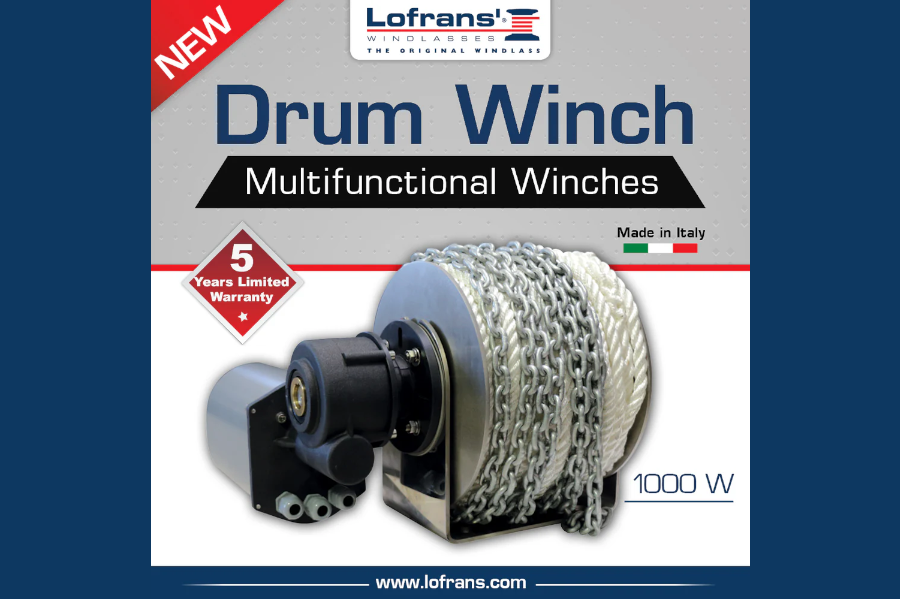

Lofrans Drum Windlass

Lofrans Drum Windlass

Discover the ultimate anchoring solution for your boat with the Lofrans Drum Windlass. Engineered for boats up to 40 feet, this robust windlass combines durability with effortless functionality.

Manufactured from marine-grade AISI 316 stainless steel and featuring an anodised aluminium gear case, it ensures long-lasting performance in marine environments. The heavy-duty electric motor and gearbox, complemented by IP67 protection, guarantee reliability in all conditions. With 8 adjustable gearbox positions and accessories including rope, chain, and a reversing solenoid, the Lofrans Drum Windlass is your go-to choice for secure and efficient anchoring.

Elevate your boating experience with quality winches from Lofrans

Main Features
  • Fast and easy rope & chain anchoring for boats up to 40 feet / 12 metres
  • Marine AISI 316 Stainless Steel drum, base & backing plate
  • Anodised aluminium gear case
  • Heavy-duty electric motor and gearbox
  • IP67 motor cover
  • Gearbox with 8 adjustable positions
What’s included?
  • Drum winch assembly
  • Reversing solenoid
  • Rocker switch
  • Circuit breaker
  • Backing plate
  • Fixing hardware
  • 70 metres of rope (Ø12mm 3-strand)
  • 8 metres of chain (Ø6mm)
Construction  AISI 316 Stainless Steel
Motor Size  1000 watts
Power Supply 12 volts
Maximum Pull-Empty Drum  900 kg
Maximum Pull-Full Drum  220 kg
Amps at Working Load  135 amps
Maximum Retrieval Rate  45 metres per minute
Maximum Fall Rate  50 metres per minute
Rope-Chain Capacity (12mm Nylon three strand rope / 6mm chain)  70 metres / 8 metres
Net weight  19 kg
Part Number  636690
