BLUE WATER | EXPRESS SERIES

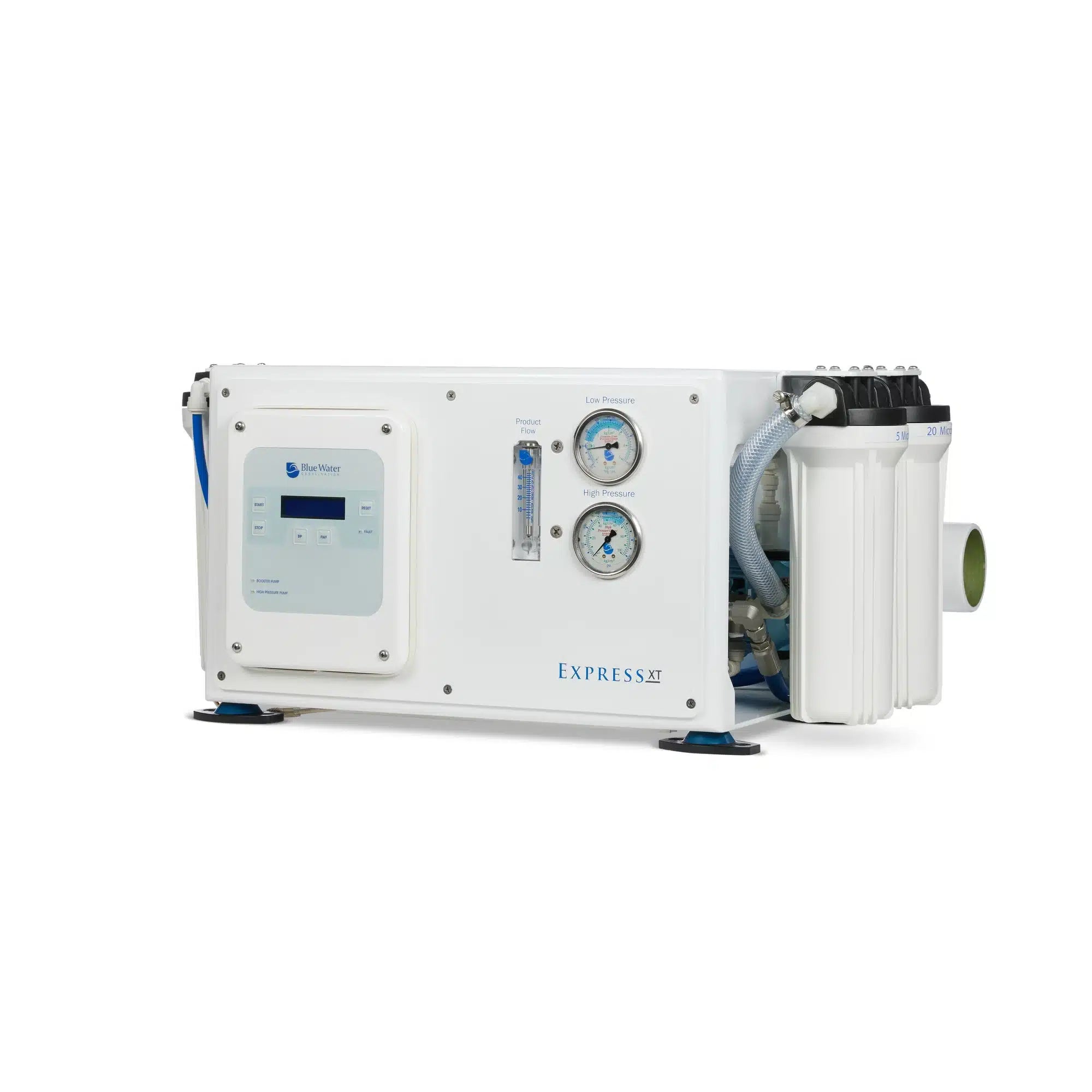

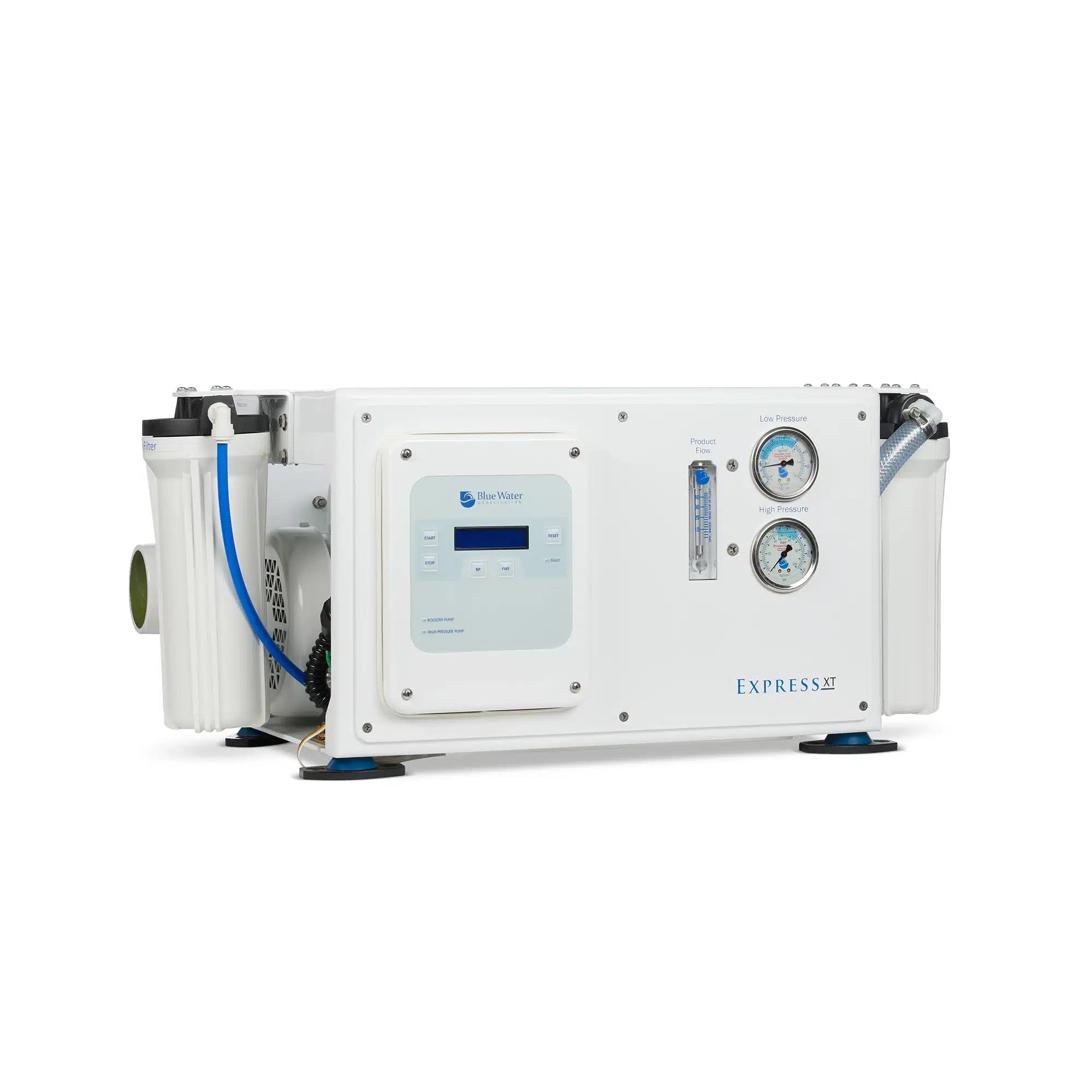

EXPRESS XT
The Blue Water Express XT water makers feature fully automatic operation with capacities of up to 40 gallons per hour (150 litres per hour). These units were designed to fit into the tight spaces of small and mid-sized yachts. The one-touch operation makes the Express XT series is ideal for applications where it is difficult to access the water maker while the vessel is underway.
FEATURES
- Fully automatic

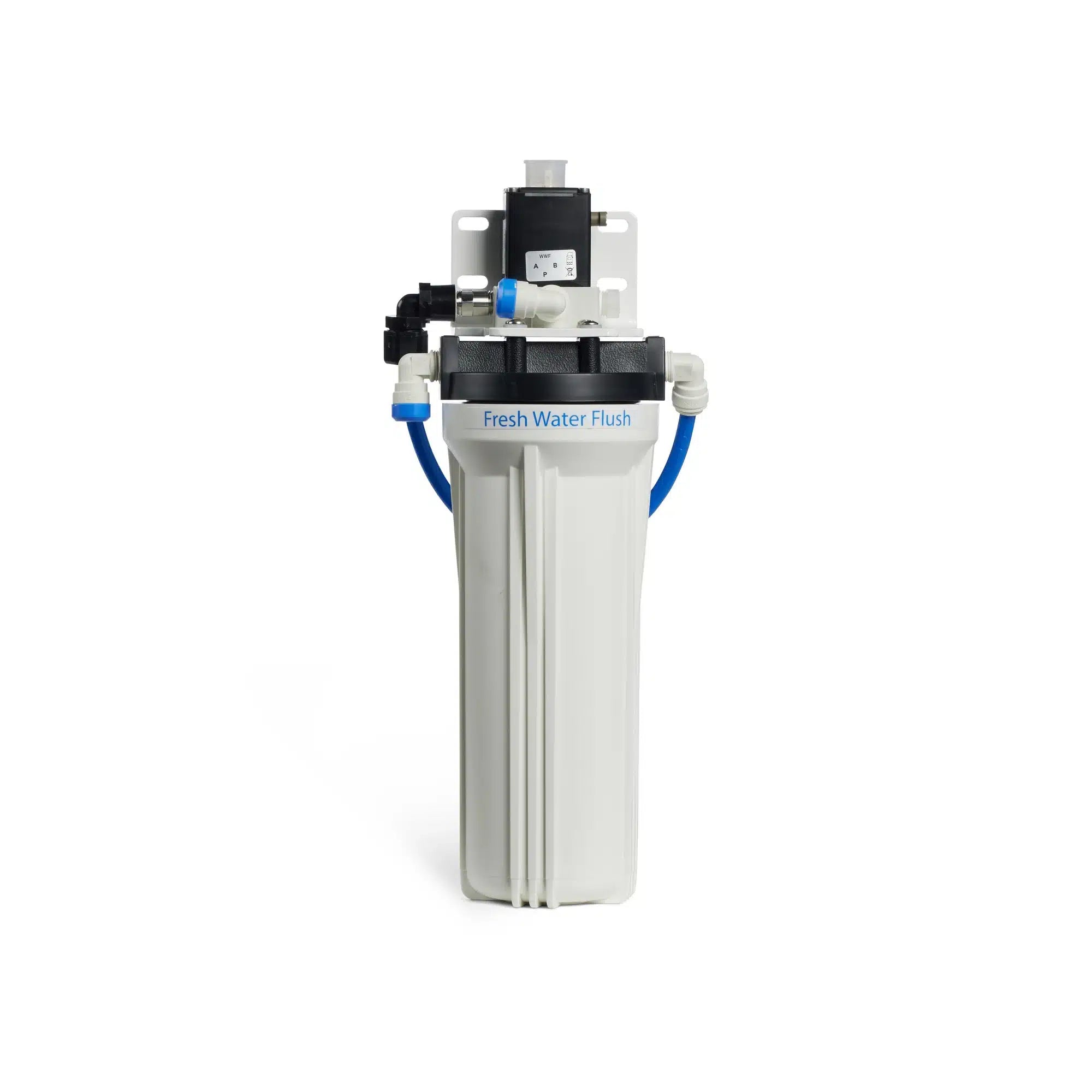

- Fresh water flush system
- High rejection membranes
- Product water carbon filter
- Dual voltage 50/60Hz motors
- Stainless steel booster pump shaft
- Designed for ease of service & maintenance
- Installation Kit

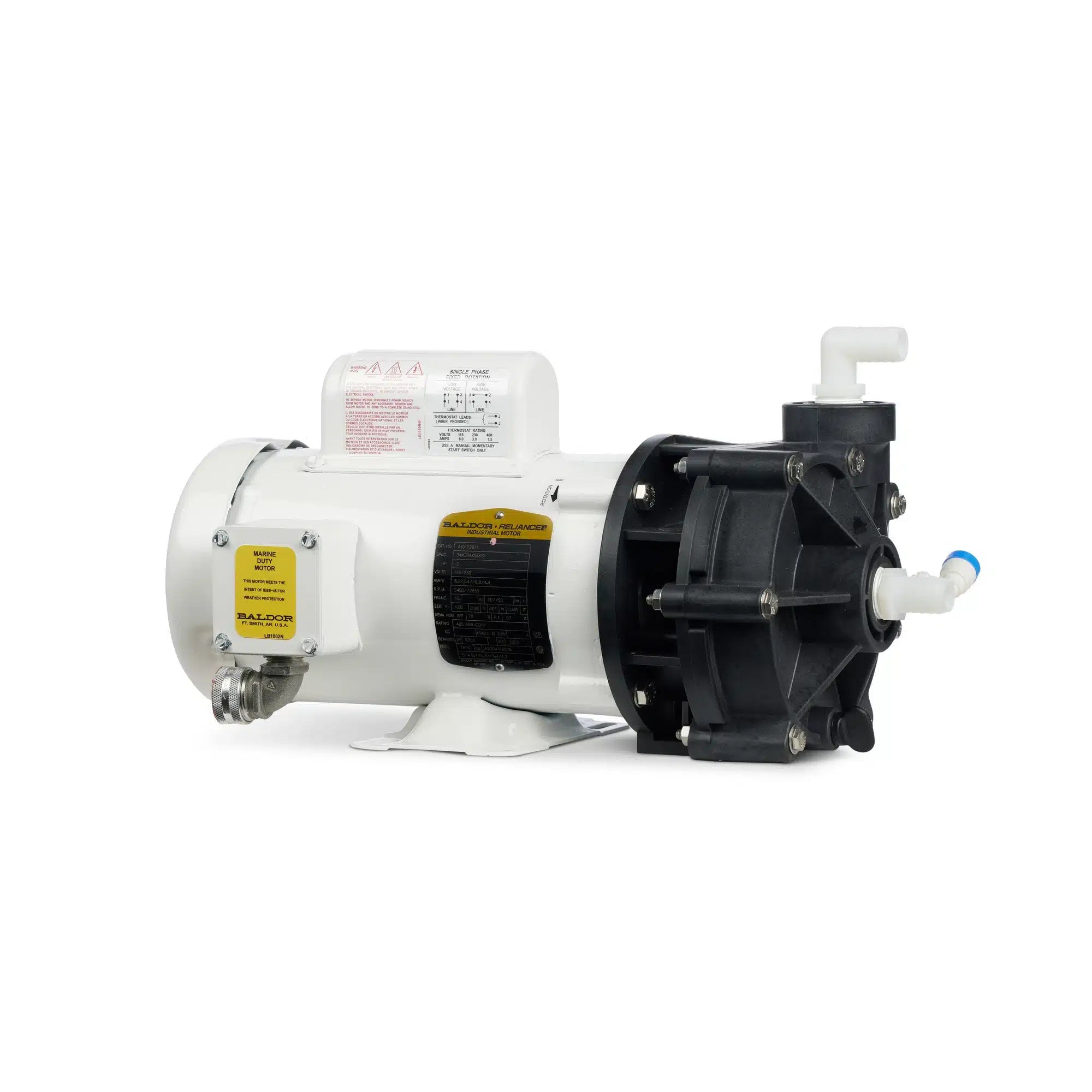

- Optional Magnetic Drive Booster Pump
Advantages
- One-touch operation
- Simple controller with digital display
- Low-pressure safety switch
- High-pressure monel transducer
- Adjustable FWF interval up to 10 days
- Optional remote control
- Available in modular or compact frame & configuration
Specifications
| Model | Membranes | Production / Hour | Production / 24HR | Weight |
|---|---|---|---|---|
| EX XT 360 | 1 | 15 Gal / 57 L | 360 Gal / 1,360 L | 140lbs / 64kg |
| EX XT 600 | 1 | 25 Gal / 95 L | 600 Gal / 2,270 L | 160lbs / 73kg |
| EX XT 800 | 1 | 33 Gal / 126 L | 800 Gal / 3,030 L | 170lbs / 77kg |
| EX XT 950 | 1 | 40 Gal / 150 L | 950 Gal / 3,600 L | 170lbs / 77kg |
| - | - | - | - | - |
| Model | Feed Flow GPM | Booster Pump HP | kW | HP Pump HP | kW | Run Amps 110V / 220V | Start Amps 110V / 220V |
|---|---|---|---|---|---|
| EX XT 360 | 1.5 | 0.5 | 0.37 | 1 | 0.74 | 13A / 6.5A | 72A / 36A |
| EX XT 600 | 3 | 0.5 | 0.37 | 2 | 1.47 | 26A / 13A | 94A / 47A |
| EX XT 800 | 3 | 0.5 | 0.37 | 2 | 1.47 | 26A / 13A | 94A / 47A |
| EX XT 950 | 4.2 | 0.5 | 0.37 | 2.5 | 1.8 | 31A / 15.5A | 109A / 55A |
| - | - | - | - | - | - |
