DOMETIC AIR CONDITIONING | DTG SERIES

DOMETIC DTG

The Turbo series completely revolutionized self-contained boat air conditioning with patented innovations in system design. Energy efficient, high capacity, and compact, the Turbo is a tough but elegant solution that keeps getting better.

Technicians often encounter a tight squeeze when installing a new A/C unit on a boat, but the Turbo was designed to make installation fast and simple.

**COMPACT SIZE**

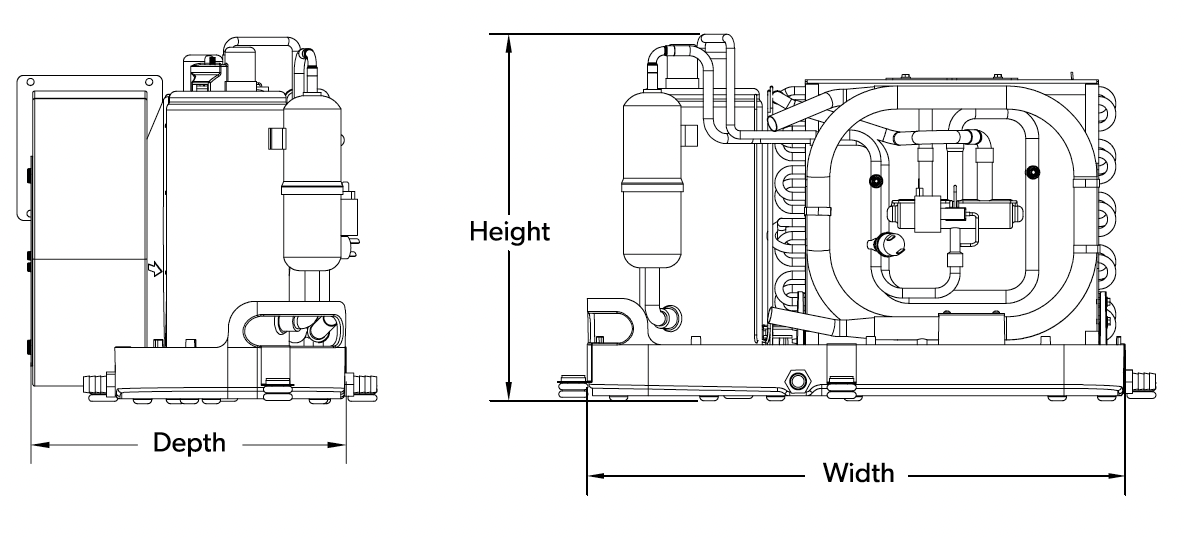

At the same time the Turbo was designed to be more powerful, it was also designed to be smaller in height and depth so it can easily fit into more spaces. There is no blower-motor overhang, and the drain pan has a small footprint.

**QUIET OPERATION**

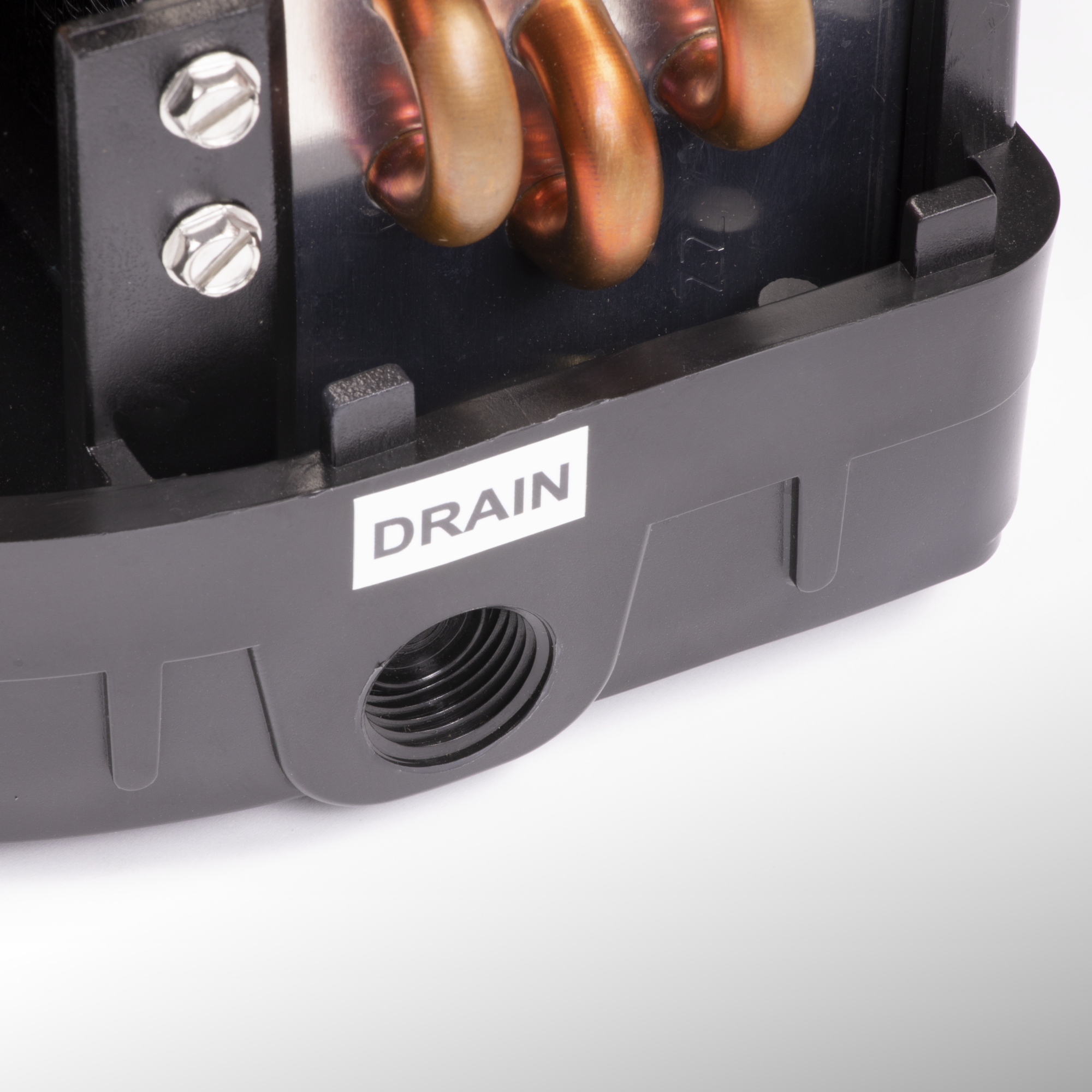

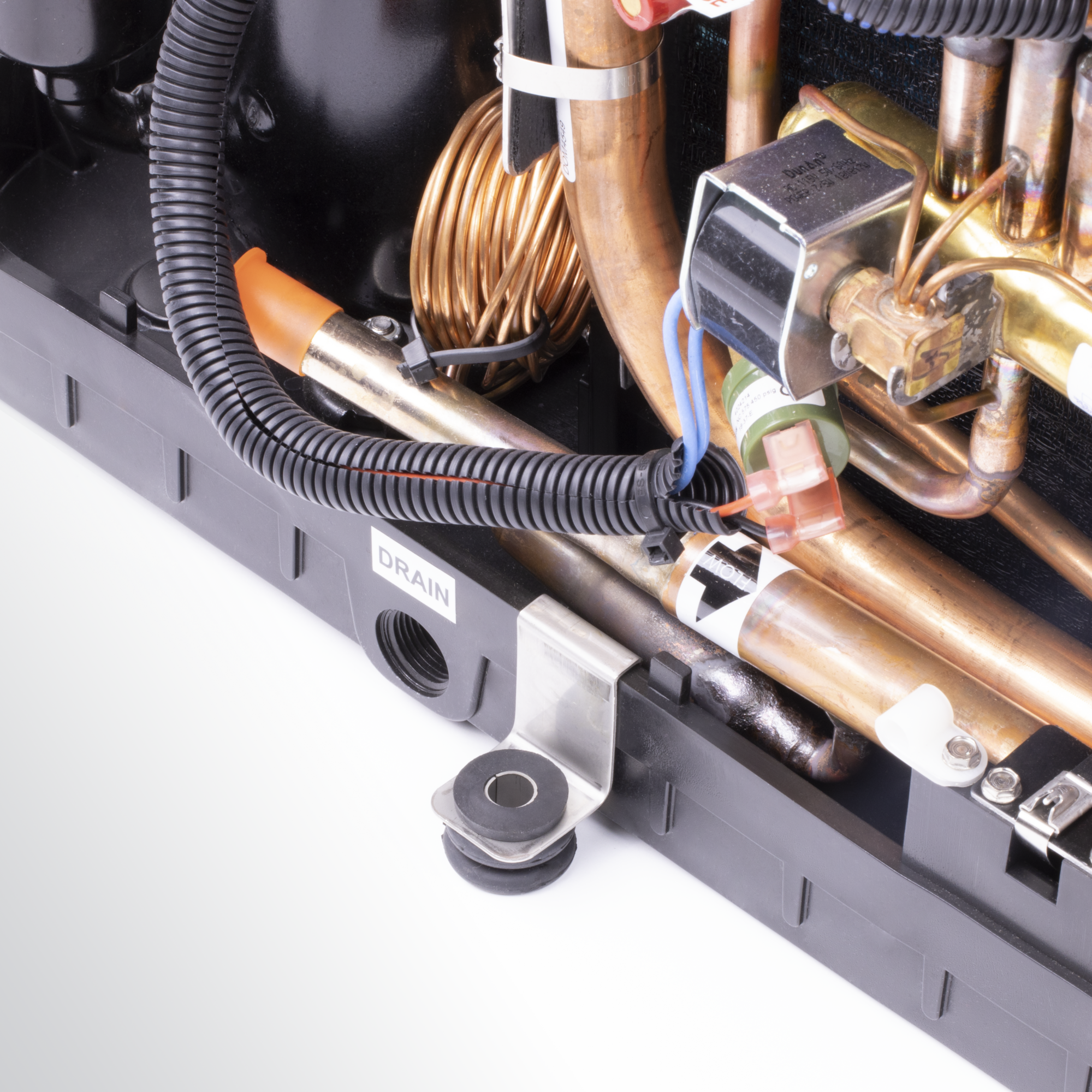

The rust-free molded composite drain pan has three drains for rapid removal of condensate water. Channels built into the pan guide water directly to the drain locations, regardless of which way the boat is heeling.

**RAPID DRAINAGE**
The rust-free molded composite drain pan has three drains for rapid removal of condensate water. Channels built into the pan guide water directly to the drain locations, regardless of which way the boat is heeling.

BENEFITS

Operates at 50 or 60Hz: lower voltage units will run 100-120 volts and higher will run voltage units 200-240 volts
Special coating on the evaporator coil helps shed water more quickly which minimises corrosion
Channels in drain pan guide water directly to multiple drain locations, regardless of boat's heeling angle

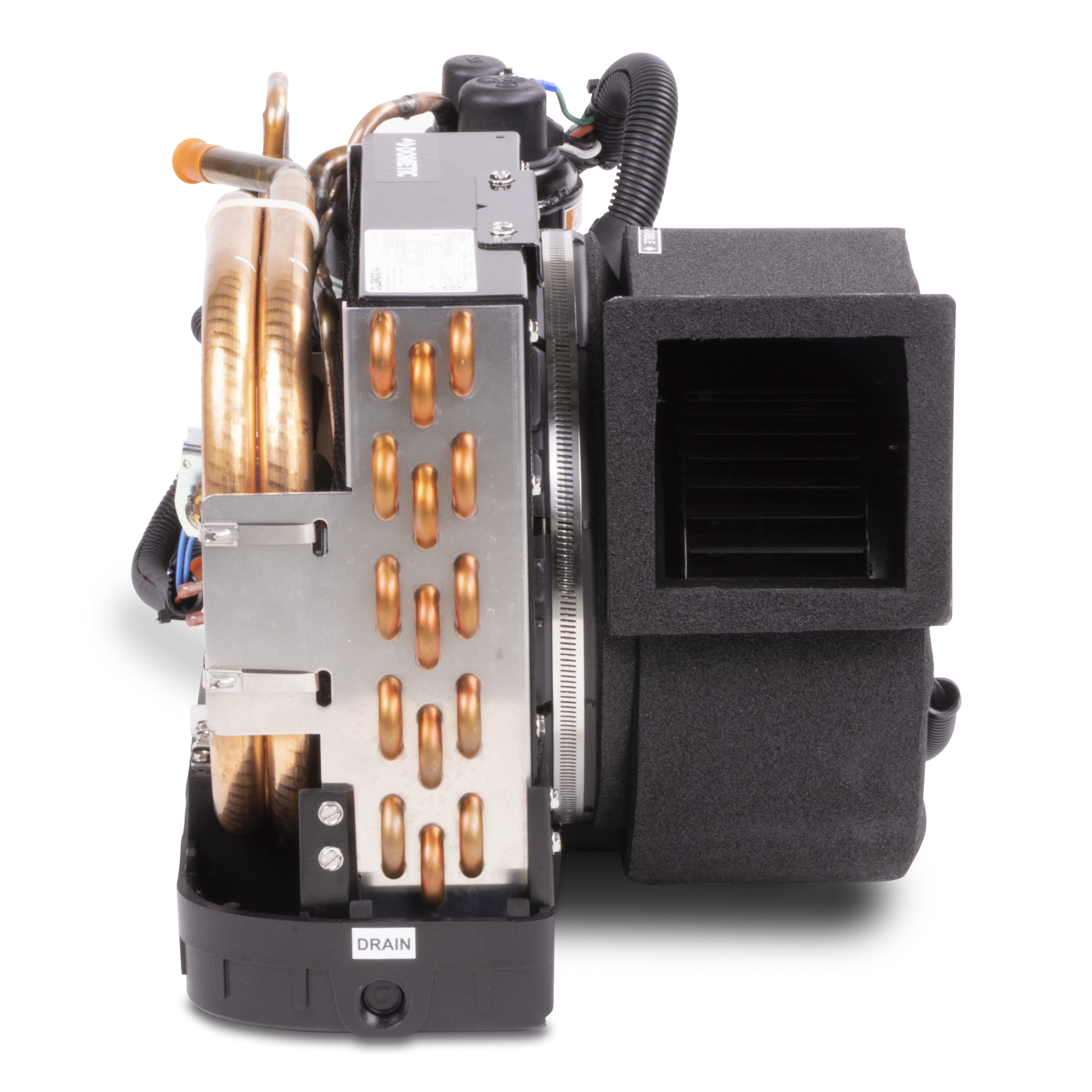

Rotate the blower up to 270° to find the perfect ducting angle using a single adjustment screw
Critical components are easily accessible for simplified servicing or replacements
