SEA RECOVERY | PARKER
LTM 300

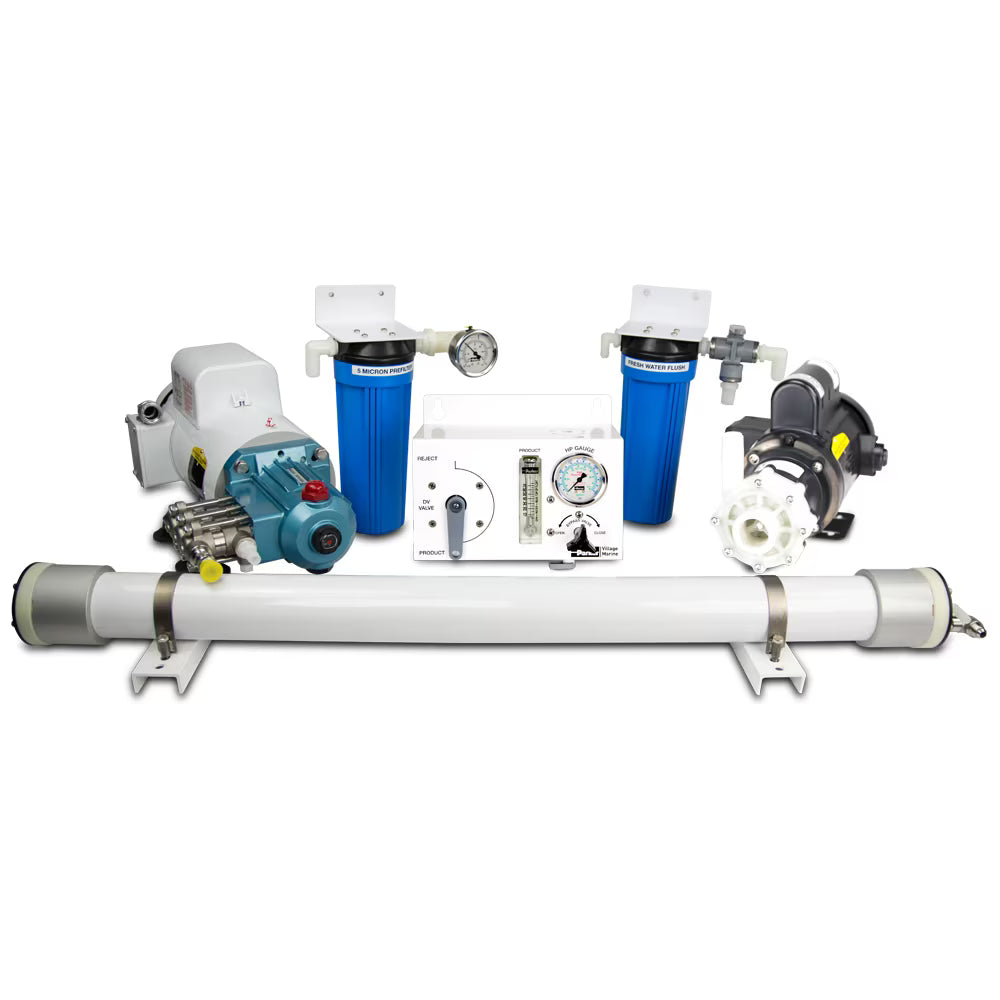

The Village Marine LT Series Watermaker is a modular system, designed for maximum installation flexibility in any vessel layout. Capable of producing up to 300 gallons per day (GPD), this high-efficiency desalinator is perfect for powerboats, sailboats, catamarans, and small-to-mid-sized commercial vessels.
Built with durable marine-grade components, the LT Series ensures reliable freshwater production while taking up minimal space. It's modular design allows for easy maintenance and upgrades, making it a practical choice for both cruising and professional applications. With its quiet operation and energy-efficient pumps, this system delivers clean, potable water for extended trips at sea, giving you peace of mind and independence from shore water supplies.
MODULAR
The system is modular with loose pre filters and booster pump, allowing flexible mounting above or below the waterline.
MANUAL CONTROL
Includes a control manifold with regulator and bypass valve, and uses analog gauges and flowmeters.
Freshwater Capacity
Produces up to 300 gallons per day (1,325 litres), meeting the needs of larger vessels.
Reliable Operation
Engineered for consistent performance and long-term durability in demanding marine environments.
KEY FEATURES
Capacity
- Freshwater Output: Approximately 300 gallons per day (1,325 liters/day), suitable for medium-sized vessels and extended voyages.
- Flow Rate: Up to 12.5 gallons per hour (47.3 litres per hour).
Automation & Control
- Manual Operation: Designed for straightforward manual operation, reducing complexity and maintenance needs.
- Control Manifold: Features an integral control manifold with a pressure regulator and bypass valve for consistent pressure and prevention of over or under-pressurization.
- Pressure Adjustment: Adjustable to allow operation in brackish or freshwater conditions.
Meters & Monitoring
- Flowmeter: Acrylic flowmeter to monitor freshwater production.
- Pressure Gauges: Stainless steel glycerin-filled pressure gauges for accurate system pressure readings.
- Water Quality Monitoring: Optional salinity monitor and diversion valve system for water quality assurance.
Safety Features
- Diversion Valve: Automatic diversion valve diverts water to overboard if quality drops below acceptable standards.
- Low-Voltage Circuitry: Low voltage control circuitry with shielded terminals for end-user safety.
Service & Maintenance
- Installation: Shipped from the factory ready to install and function with a complete installation kit included.
- Maintenance Manual: Comprehensive and detailed Owner’s Operation & Maintenance Manual provided.
- Service Network: Worldwide service and sales network for immediate attention regardless of location.
Specifications
- Electrical Supply: 12 VDC / 60 amps or 24 VDC / 30 amps.
- Weight: Approximately 92 lbs (42 kg).
- Dimensions: Height: 12 inches (30 cm); Width: 16 inches (41 cm); Length: 19.5 inches (50 cm).
Specifications
| Model | Volts | Per Hour | Per Day | Weight |
|---|---|---|---|---|
| 90-8154PH | 12V | 12.5 Gal / 47.3 Litres | 300 Gal / 1320 Litres | 42kg |
| 90-8596PH | 24V | 12.5 Gal / 46.3 Litres | 300 Gal / 1320 Litres | 42kg |
