• Smallest line of watermakers
• Modular design – allows flexible installation options
• Compact Design
• Production of 170, 350, 550, or 750 gallons/day
• DC power available for the Aqua Whisper 170
• Low AC power consumption

SEMI-AUTOMATIC FUNCTIONS

• Touch pad control panel with simple touch operation.
• 6 illuminated LED status indication lamps for system operation.
• Weekly automatic fresh water flush timing (optional) and sequential starting of electric motors with manual override.

METERS / MONITORS

• Hour Meter for keeping accurate ship’s logs & schedule preventative maintenance.
• New solid state electronic flow meters for visual monitoring of the product water and feed water flow used to calculate production rates of the system.
• Exclusive Solid Salinity Meter shows actual product water quality, an essential tool for product water monitoring.
• Product water quality is displayed in bar graph format with 10 additional LEDs.

PUMPS

• Exclusive high efficiency booster pump for extended pre-filter life.
• Quiet high pressure pump runs smooth and is free of pulsations.

ACCESSORIES

• Push button remote control available
• A Soft Motor Starter is available for single phase AC powered systems that reduces start up power by 60%.
• Clear viewable Sea Strainer with a cleanable Monel Mesh Screen filter for ultimate corrosion resistance and large particulate removal.
• Optional – pH Neutralizer, and Automatic Fresh Water Flush.

NOISE REDUCTION FEATURES

• The quiet stainless steel high pressure pump is specifically designed for sea water reverse osmosis applications. The unique design of this high pressure pump reduces noise level to a negligent hum.
• Low noise manifold design
• Vibration isolation mounts included.

MATERIALS

• Dedicated heavy duty Magnetic Latching Relays for each motor integrated in the system.
• 316 Stainless Steel Pressure Transducers for accurate measurement of system functions.
• New High rejection / high yield membrane element that produces higher quality product water in a smaller space.
• Fiberglass Reinforced High Pressure Membrane Vessel is stronger and eliminates corrosion.

SAFETY

• A failsafe Product Water Diversion Valve
• Unique Low Voltage Control Circuitry, shielded terminals, and covered high voltage components for end-user safety.

SERVICE AND MAINTENANCE

• Fault LED indication is provided for easy diagnosis of required maintenance.

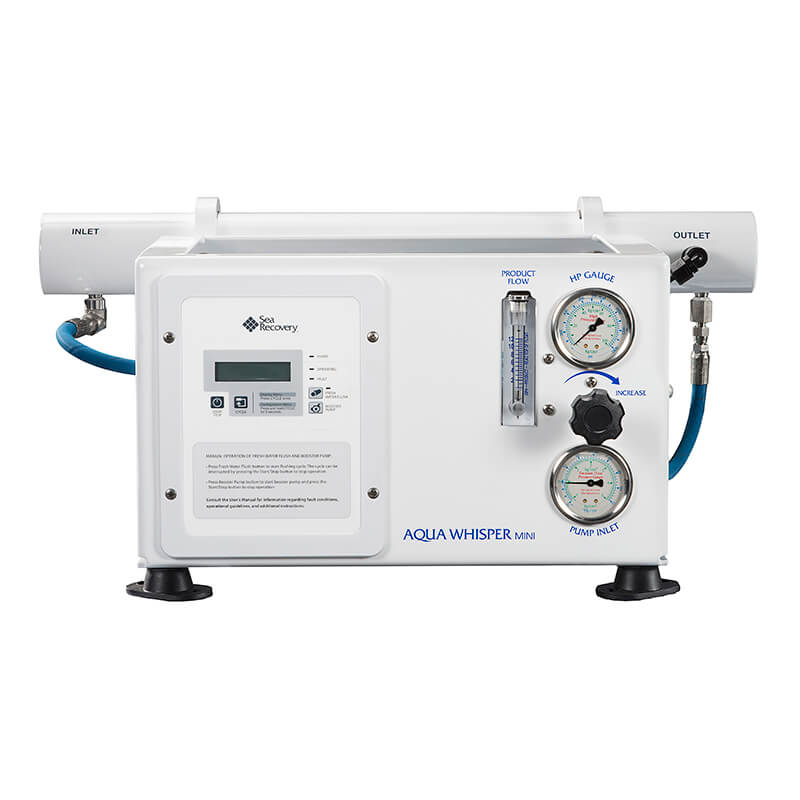

• The Aqua Whisper Mini is shipped from the factory ready to install and function.
• There are no optional items required, and a complete installation kit is also included along with a comprehensive and detailed Owner’s Operation & Maintenance Manual.
