JOHNSON Impellers 09-814B (For F9 Pumps)
JOHNSON Impellers 09-814B (For F9 Pumps)
JOHNSON Impellers 09-814B (For F9 Pumps)

Johnson Pump

JOHNSON Impellers 09-814B (For F9 Pumps)

Sale price$322.15

Tax included

SKU: 09-814B
In stock

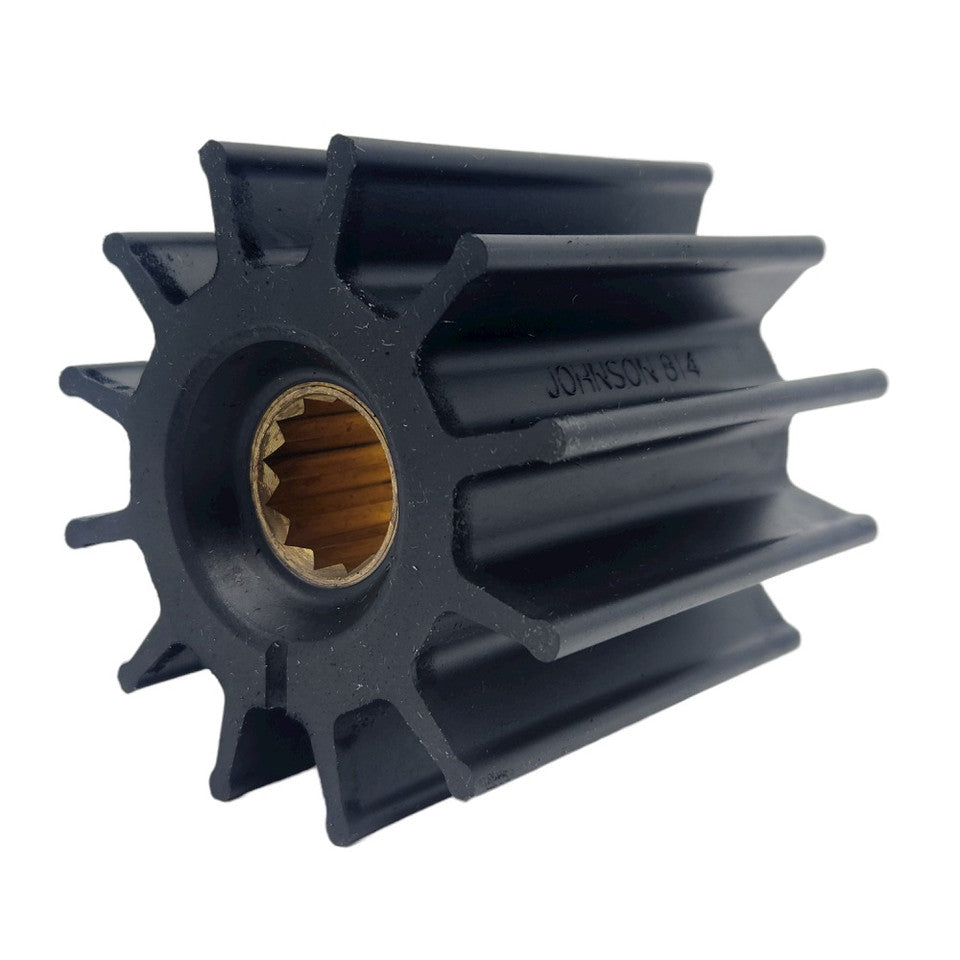

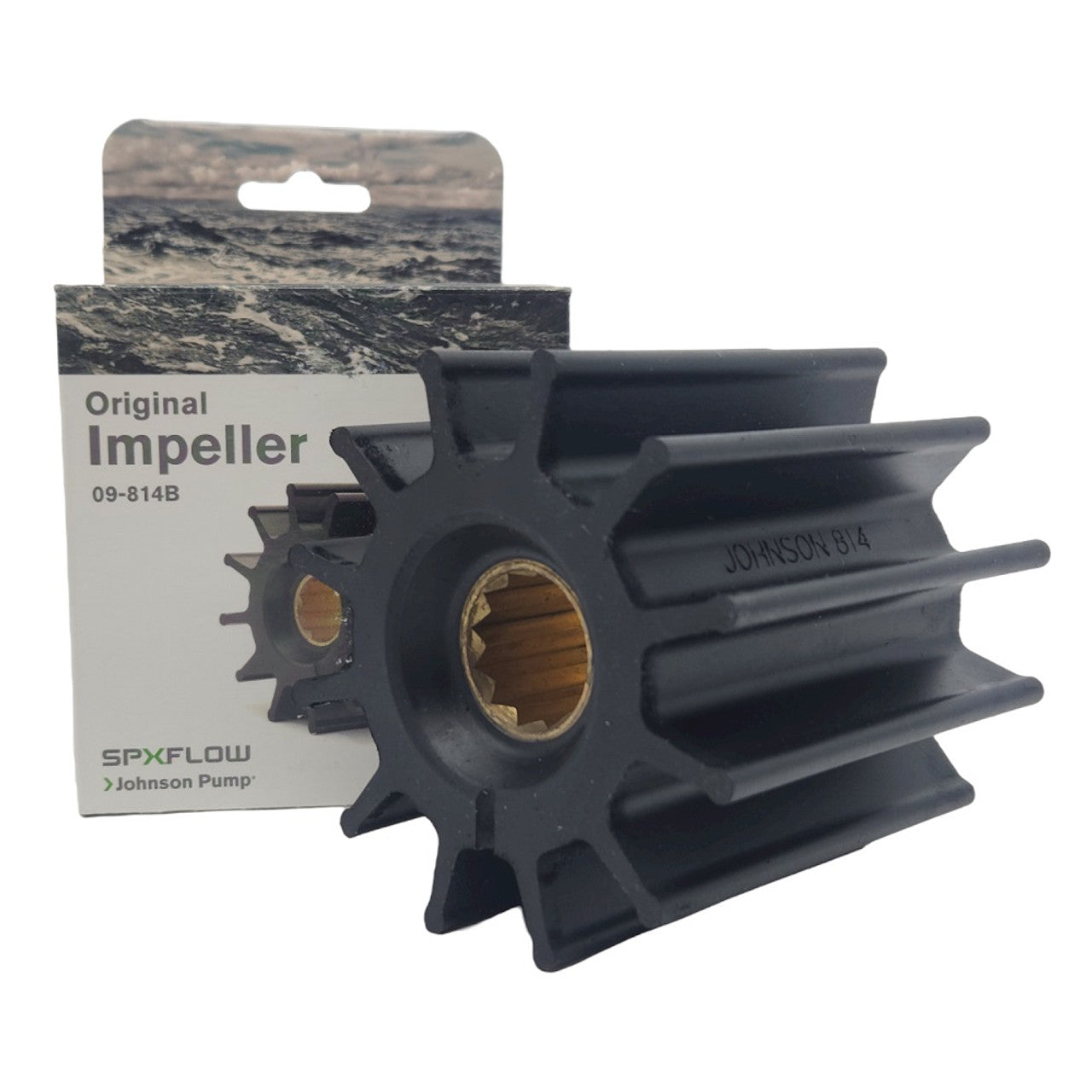

SPX Johnson - 09-814B - Impeller

SPX FLOW engineers Johnson Pump impellers for outstanding performance!

SPX FLOW supplies engine cooling pumps to the world’s leading marine motor manufacturers, not just because of our renowned pumps; but also because of the heart of an engine cooling pump: the impeller!


  • Pump: F9
  • Material: Neoprene
  • Outer Diameter: 95mm (3.74")
  • Inner Diameter: Splines
  • Width: 88.5mm (3.48")
  • Replaces Jabsco: 21676-0001
  • Comes with all gaskets and lube required for installation


With SPX FLOW Johnson Pump Marine Original Impellers you get:

  • Ensures correct cooling flow
  • Stable pressure delivery over time
  • Significantly longer service life
  • Excellent self-priming capability
  • Ensures sufficient cooling directly at start up
  • Our impellers are manufactured to strict tolerances for optimal functionality unique MC97 rubber compound in many of our impellers
  • Correct impeller dimensions
  • Optimized to provide maximum life, especially for applications where the end user doesn’t run the engine on a regular basis
