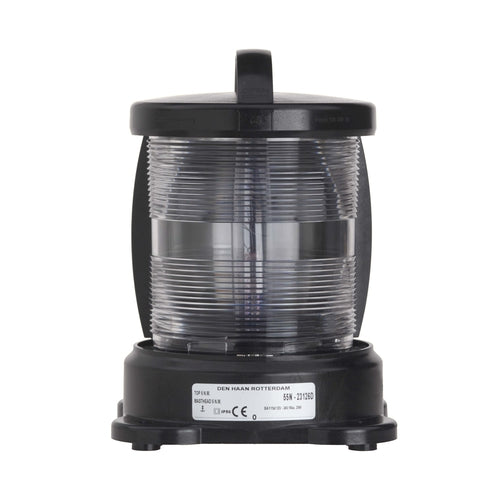

DEN HAAN - DHR55N

Description

Unbreakable and extremely reliable

Application

• For all seagoing vessels with a length less than 50 metres
• For all vessels in Rhine and (European) Inland navigation
• NATO classification

Materials

• Matt black polycarbonate reinforced with fibreglass
• Corrosion-free, seawater resistant, non-magnetic
• Fresnel polycarbonate lens, shock resistant

Wiring

• Cable gland PG13, from below or side

Housing

• Polycarbonate, glass fibre reinforced, other components of non-corrosive materials. Nonmagnetic, seawater resistant

Housing colour

• Matte Black

Electric

• Conus inclusive 1.5 m special connection cable 2 x 1.5 mm², self-protective insulation, class II

Lamp

• Easy to change tungsten bulb with socket BAY 15d. Light sources installed

Cable insert

• PG 13.5 with buckling protection

Mounting

• Base flange attachement, 4 screws Ø8 mm (not included). Allround lights may also be hoisted when 2 halyard hooks are attached (not included). Additional mounting aids see drawing

Approvals

• International according to IMO Colreg 1972, in Germany through BSH, other countries in particular see list of approvals

Min. visibilities

• 2 n.m., masthead light 5 n.m

Optics

• Seawater resistant special plastic Fresnel lens
