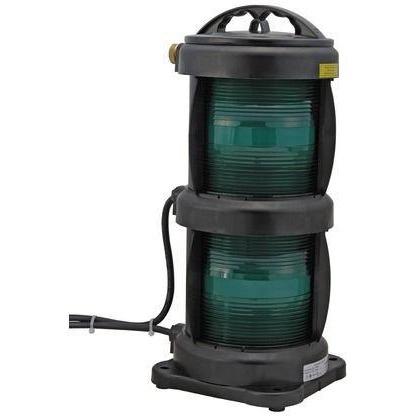

DEN HAAN - DHR70N - Double

Electrical

DEN HAAN - DHR70N - Double

Product Name Part Number Stock Price Qty
A/R Red 3nm no lamp 70270000 Out of stock $1,014.00
A/R White 3nm no lamp 70260000 Low Stock $1,014.00
Masthead 6nm no lamp 70230000 Out of stock $1,014.00
Port 3nm no lamp 70220000 Out of stock $1,014.00
Starboard 3nm no lamp 70210000 Out of stock $1,014.00
Sternlight no lamp 3nm no lamp 70240000 Out of stock $1,014.00
Sternlight Yellow 3nm no lamp 70250000 Low Stock $1,014.00

Unbreakable and extremely reliable

Application

  • All vessels ≥ 20 m in length. Lights marked may also be used on inland waterways without limitation of ship´s length

Housing

  • Polycarbonate, glass fibre reinforced, other components of non-corrosive materials. Housing self-ventilated. Nonmagnetic, seawater resistant

Housing colour

  • Matte black

Electric

  • Conus inclusive 1.5 m special connection cable 2 x 1.5 mm², self-protective insulation, class II

Lamp

  • Easy to change special tungsten bulb

Cable insert

  • Special cabe gland metric pressure screw M24 x 1.5 with protection against buckling

Mounting

  • Base flange attachment, 4 screws (not included). Allround lights may also be hoisted. Additional mounting aids see drawing

Approvals

  • International according to IMO Colreg 1972, in Scandinavian countries too, in Germany through BSH, other countries in particular see list of approvals

  • US-Coastguard, China Classification Society. These lights may only be used on ships flying the flags of the USA or P.R. China

Min. visibilities

  • 3 n.m., masthead light 6 n.m., manoeuvre 5 n.m

Optics

  • Seawater resistant, special plastic Fresnel lens
