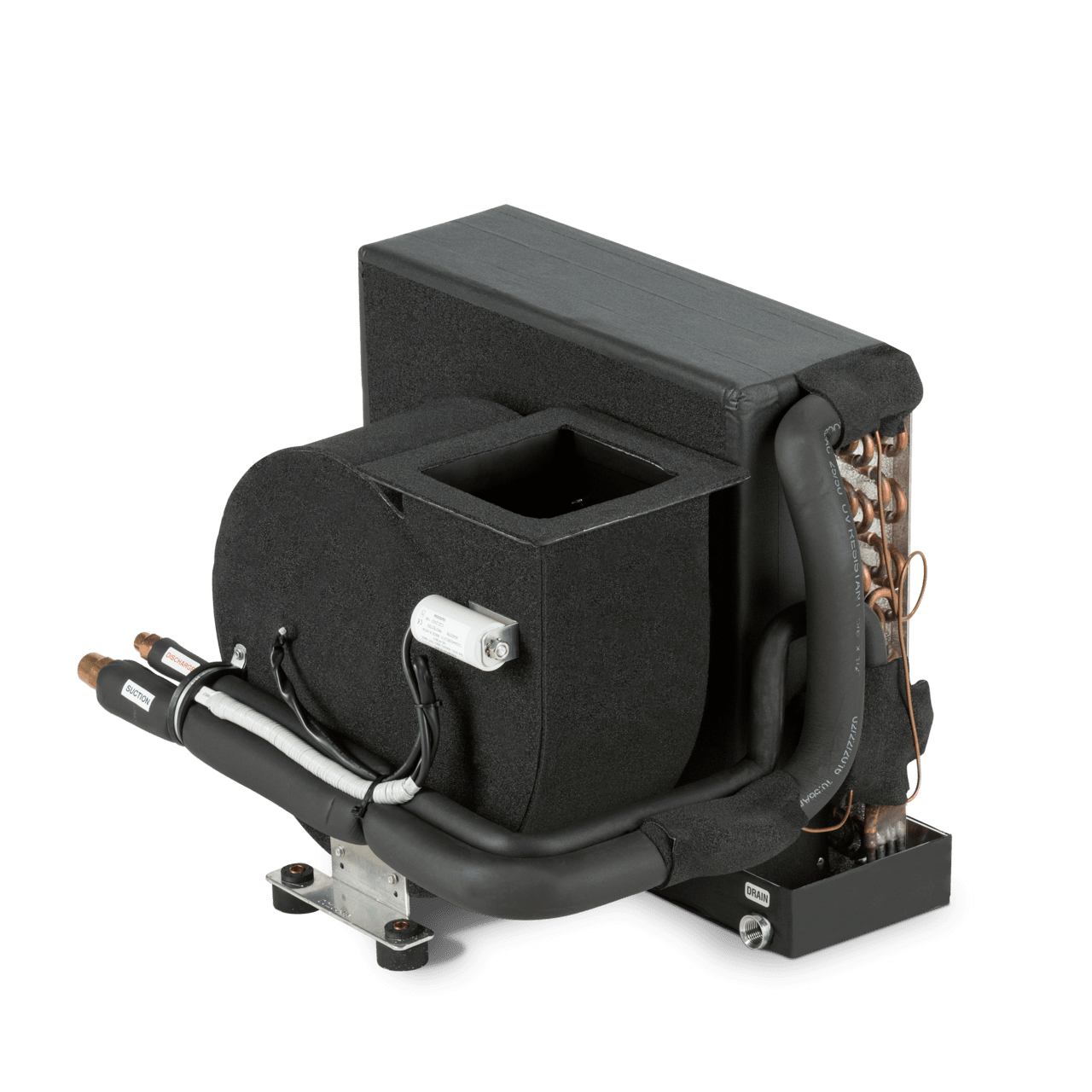

DOMETIC EBE30 Emerald Evaporator Unit 30,000 BTU/h-230v-50/60Hz-R410A-10"MR
The EBE Series was designed for installation low in a closet, cabinet, or other enclosed space, with discharge air ducted to one or more grilles high in the cabin.
Compact EBE split evaporators for boats are draw-through, ductable cooling units with reverse-cycle heating. Featuring a rotatable, high-efficiency permanent split capacitor (PSC) blower in which the motor is concealed. Vibration-isolation mounting is built into each EBE unit to reduce noise and vibration. The PSC blower is supported by a sturdy aluminum bracket with isolation grommets to reduce possible vibration. The blower’s internal motor housing reduces the overall unit depth for easier installation and promotes quieter operation.
Features
- Compact ductable cooling or heating units
- High-velocity (HV) fully-insulated blowers are rotatable
- Insulated condensate pan with anti-slosh, anti-fungal foam lining
- High-efficiency evaporator coil
- Larger blower inlet for increased air flow across the coil
- Blower support bracket with cushioned mounts to reduce noise and vibration
- Increased metal thickness on structural parts for added strength
- Thermal expansion valve for optimal performance over a range of conditions
- Designed to be used with Emerald Series (R-410A) condensers
- Comes with a pre-installed filter
