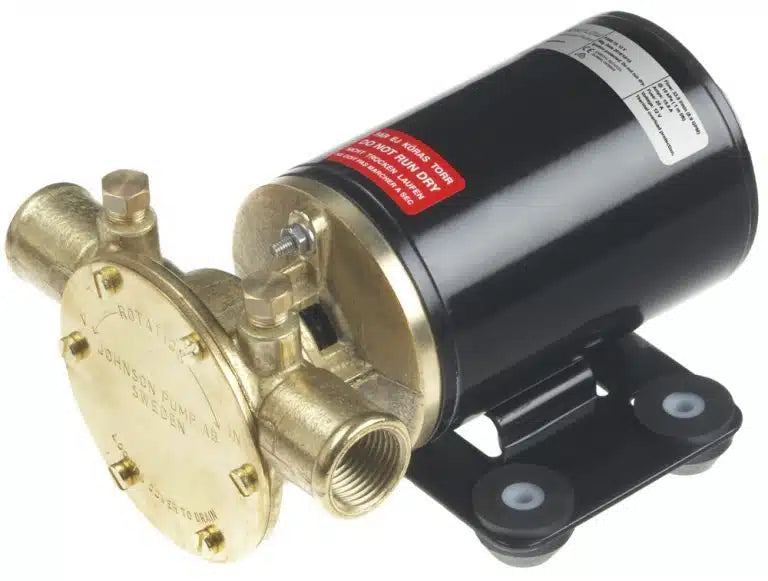

JOHNSON F3B-19 Driven Flexible Impeller Pump (12V Or 24V)

Flexible Impeller Pump Manual

With their high level of flexibility, these pumps are ideally suited for use in boats as bilge and deck wash pumps, freshwater pumps, refuelling pumps for oil and diesel. These pumps may be combined with a vacuum switch for automatic operation.

• Heavy duty motor to provide long service life even under heavy use; motor has additionally a built-in thermal overload for added protection
• Continuous operation capable up to max. 0.6 bar head pressure
• Self-priming up to 3 m under perfect conditions, maximum head should not exceed 6 m
• Output up to 21 litres / minute at free flow; approx. 19 l/m at 3m head
• With brass pump head and oil resistant nitrile impeller
• Shaft seal : Lip seal
• Connections: R3/8" female thread for corresponding fittings (not included)
• Amperage 4,8A; fuse size 8A
