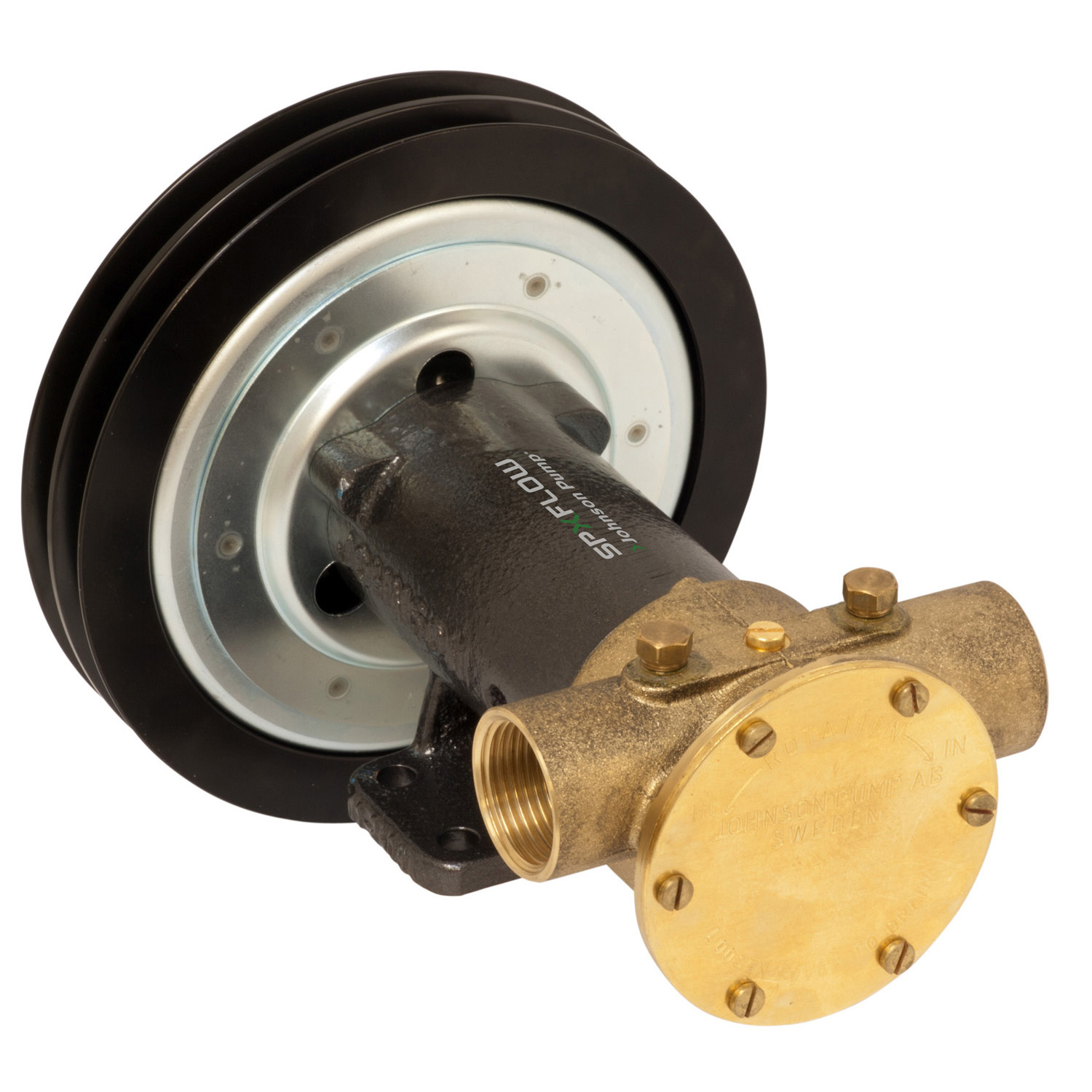

JOHNSON F7B-5000 Extra Heavy Duty Electro-Magnetic Clutch Pump
JOHNSON F7B-5000 Extra Heavy Duty Electro-Magnetic Clutch Pump

Johnson Pump

JOHNSON F7B-5000 Extra Heavy Duty Electro-Magnetic Clutch Pump

Sale price$1,724.29

Tax included

SKU: 10-24116-99
Quantity:
Out of Stock - Contact us to order

F7B-5000 Manual

With an Electro-Magnetic Clutch, you will have pumping power whenever needed, at a push of a button, without being at the pump. Combined with a vacuum switch (recommended for bilge pump application), the clutch will automatically disengage whenever the pump starts priming air, thereby preventing dry running and pump damage.

The Heavy-Duty range of multi-purpose bronze pumps are raw water resistant and have a compact design. These pumps are designed for a number of applications onboard and have gained a time-tested reputation for quality and reliability.

Specifications:

  • Pump Body: Bronze
  • Seal: Mechanical seal
  • Impeller: 09-1028B
  • Connection: 1" BSP
  • Length: 226mm
  • Width: 120mm
  • Height to shaft: 50mm
  • Weight: 6.9kg
  • Flow Rate: 107.0LPM @30KPA and 2000RPM
