Johnson Pump

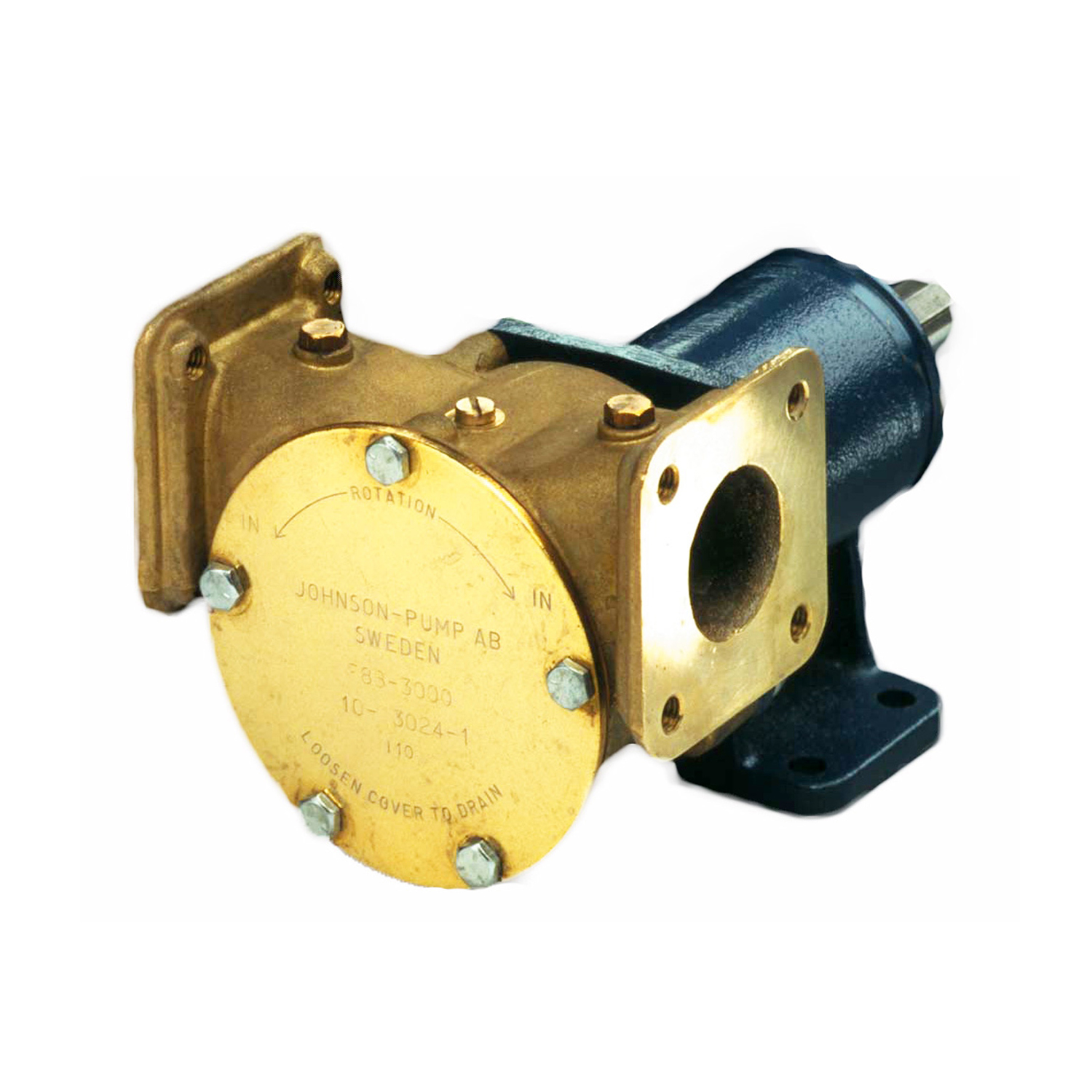

JOHNSON F8B-3000 VF Extra Heavy Duty Impeller Pump
Whenever you need greater strength or service from a pump, use the Johnson Pump extra heavy-duty flexible impeller pump with separate bearing housing and mechanical seal for less wear and longer life.
The FB-3000 series are suitable for applications such as engine cooling, bilge pumping, wash-down, emptying holding tanks, refueling, emergency and firefighting pumps.
Flexible impeller pumps provide an efficient solution to most raw water pumping needs. The pumps are self-priming and can pass fairly large solids without clogging or damaging the pumps. Designed for a number of applications on board. With an electro-magnetic clutch, you will have pumping power whenever needed, at a push of a button, without being at the pump. Combined with a vacuum switch from Johnson Pump (recommended for bilge pump application), the clutch will automatically disengage whenever the pump starts priming air, thereby preventing dry running and pump damage.
Automatically controlled pumps are available in sizes from 1in to 2.1/2in (20 L/min to 625 L/min), with clutches in 12 or 24 volts. Wearing parts are easily replaceable and service kits are available for all standard models. Vacuum Switch as extra accessory.
Features
- Limited 3 Year Warranty
- FxB-3xxx = Flexible Impeller Pump, Bronze body, 3 = Pedestal mounted with double ball bearings and mechanical seal
- TSS - The Space Saver - horizontal flanges in a space saving design
- VF - Vertical Flanges
- Flow Rate Max. 279 litres / minute at 2000 rpm
- Other pumps available in sizes from ¾" to 2 ½" (13 L/min to 625 L/min)
- Wear parts are easily replaceable and service kits are available for all standard models
- Connections BSP or NPT
- Vacuum switch as extra accessory
