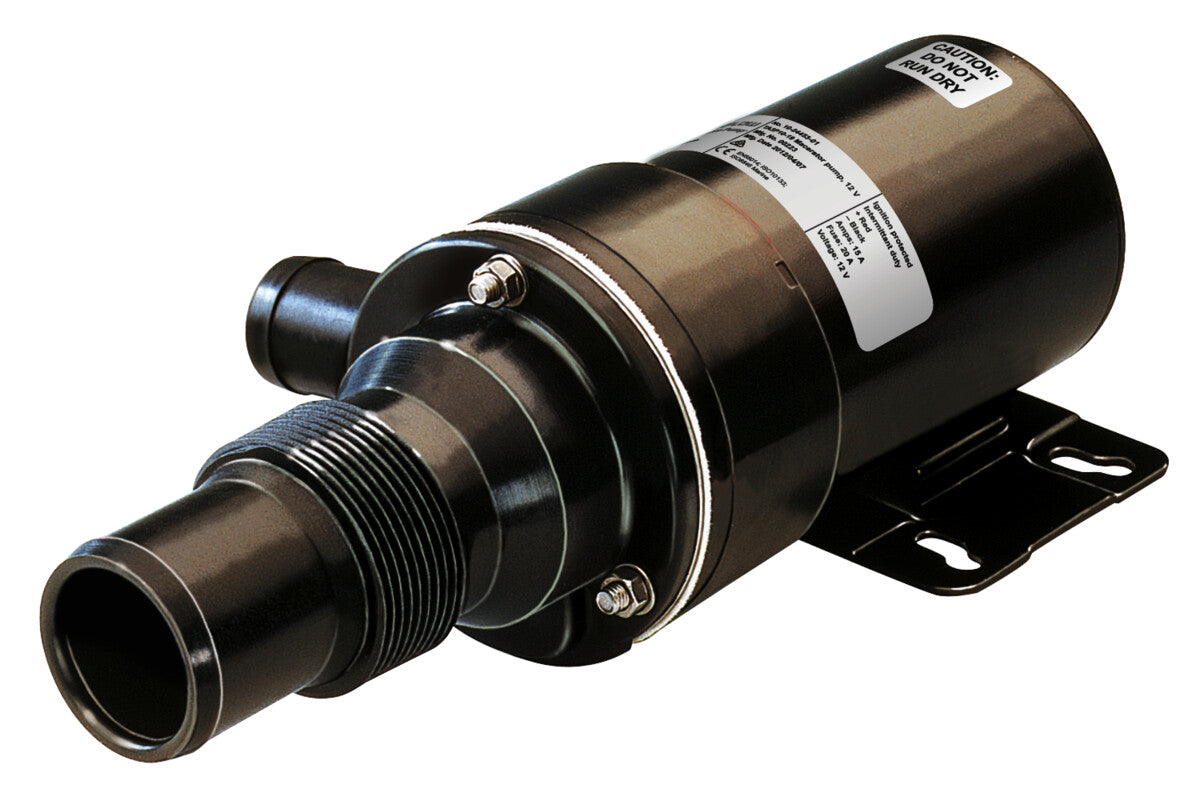

JOHNSON TA3P 10-19 Macerator Pump

10-24453-04

Description

TA3P 10-19 Macerator Pump

The Johnson Pump brand TA3P10-19 Macerator pump takes care of the toilet waste, shredding it before it is pumped into or out from the holding tank.
  • Ignition protected motor, conforming with ISO 8846 Marine
  • Mounting bracket for easy replacement
  • Extremely energy efficient
  • Rotary cutter casing of PET (thermoplastic polyester)
  • Directly connected to sewage line or holding tank



CE-approved
Specifications
Pump body:
Phenol plastic (PF)
Impeller:
Nitrile
Cutter casing:
Thermoplastic polyester (PET)
Shaft:
Stainless steel
Seal:
Lip seal
Voltage:
12 V or 24 V DC
Hose connection:
Inlet 1 1/2" (Ø 38 mm) hose or 1 1/2" BSP
Outlet 1" hose (Ø 25.4 mm)



Downloads

 Instruction Manual
