Johnson Pump

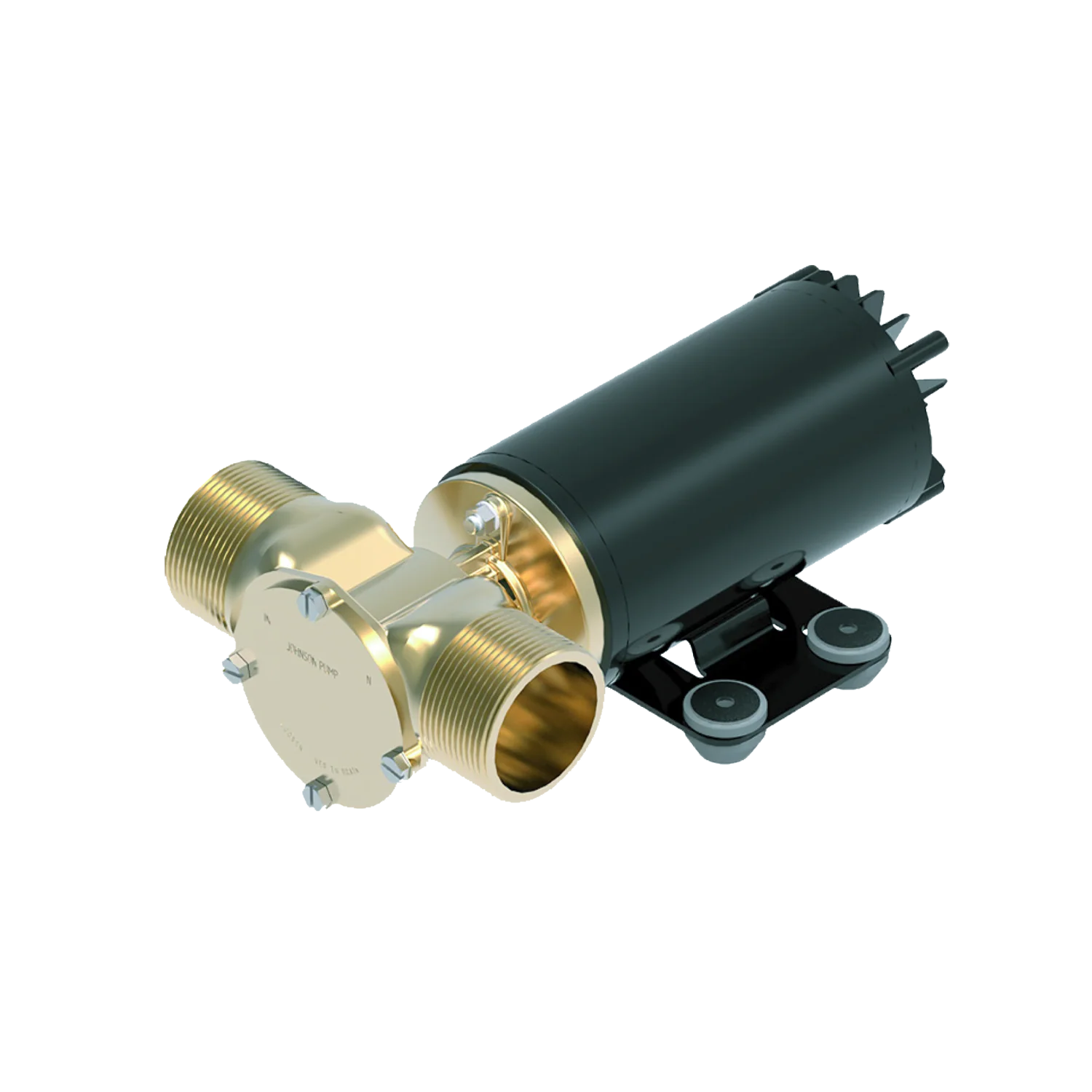

JOHNSON Talulah Ballast Pump | 30GPM | 12V
Quantity:
JOHNSON Talulah Ballast Pump | 30GPM Flow | 12V
- Built in Thermal Overload Protection with automatic reset upon cooling
- Ideal for system with tank monitoring for overfill and protection against dry-run while emptying
- Retrofit ready for existing wake and watersport boats with approved electrical and plumbing specifications
- Improved impeller compounds designed for short duration *dry-run events to keep you on the water longer
- High Performance and High Output for intermittent duty cycles
- Professional installation recommended (Acc. to ISO 10133)
- Best used with fully charged battery banks and alternators running
*Dry-Run: when the pump runs out of water, still moistened with residual water or lubricated with Johnson Pump Impeller Lube. Maximum dry-run condition of 30 seconds without harming impeller.
Technical Data
| Talulah Impeller Kit | 09-849P-2 |
| Flow | 30 GPM (1ft lift) 1 1/2" Hose |
| Voltage | 13.6VDC |
| Connection | External 1 1/2" NPTF |
| Minimum Hose Size | 1 1/2" (Ø38 mm) |
| Standards | Meets ISO 8846 & SAE J1171 |
| Degree of Protection | IP 54 |
| Wire Size | Min. 12 AWG |
| Fuse Size | 50A |
| Amp Draw @ Pumping | 25A |
| Amp Draw @ Reversal | Up to 45A |
