JOHNSON Ultima Bilge Series

Pumps & Plumbing

JOHNSON Ultima Bilge Series

Product Name Part Number Stock Price Qty
600GPH 32-47258-008 In Stock $161.10
800GPH 32-47259-008 In Stock $193.53
1000GPH 32-47260-008 Low Stock $217.32
1250GPH 32-47261-005 Low Stock $258.41

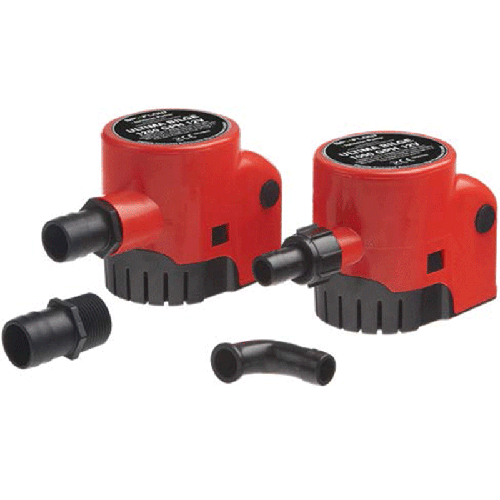

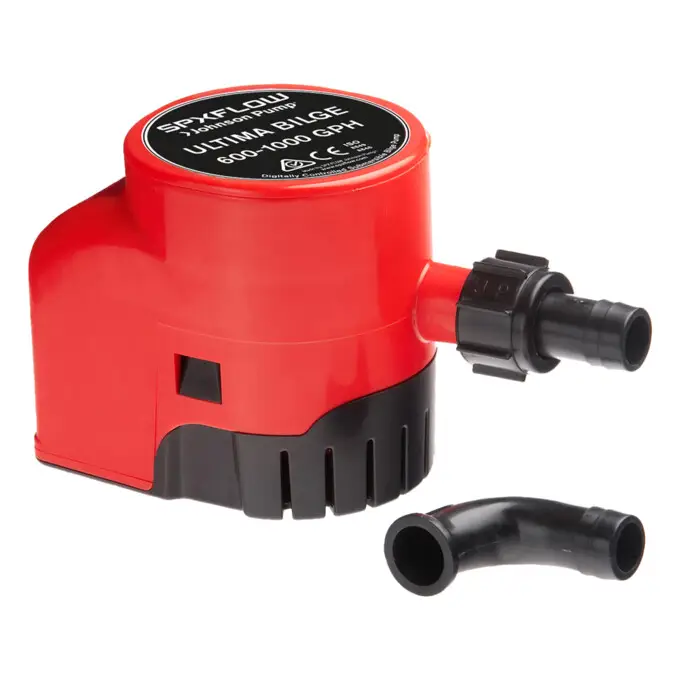

Ultima Bilge   UltimaBilge™ Pumps are the latest addition to the Johnson Pump brand lineup. Integration of the patented Ultima “field effect” sensing technology into the bilge pump body creates a sleek, reliable compact, unit ready to install and run for years and years of unerring service.
  Available in 600-800-1000-1250 GPH versions. Voltage12 V DC. For UltimaBilge™ 600GPH-100GPH, we have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. These pumps will be delivered including both a straight and a 90° smooth elbow Dura-Port and a removable check valve.

For UltimaBilge™ 1250GPH we include threaded 1.1/4" & 1.1/8" discharge port.

The Ultima Bilge pumps may be manually operated via the Johnson Pump bilge control panel.
  Dimensions:  L=142 mm, W=82 mm, H=105 mm      Weight: 0.66 kg
  • Compact, all-in-one unit
  • Integrated Ultima Switch sensing right into the pump body
  • No Mercury
  • Removable clip on basket design
  • Removable impeller cover allows for easy clean out
  • 3-wire device can be run in auto or manual override mode
  • No tools needed for maintenance
  • Extremely energy efficient
  • Water-cooled motor for long service intervals
  • Meets the international standard, ISO 8849 marine


Pump body: ABS
Shaft seal: Lip seal
Shaft: Stainless steel (SS2343)
Voltage: 12 Volt DC
Hose sizes: 600-1000GPH: 3/4"
1250GPH: 1.1/4" & 1.1/8"
