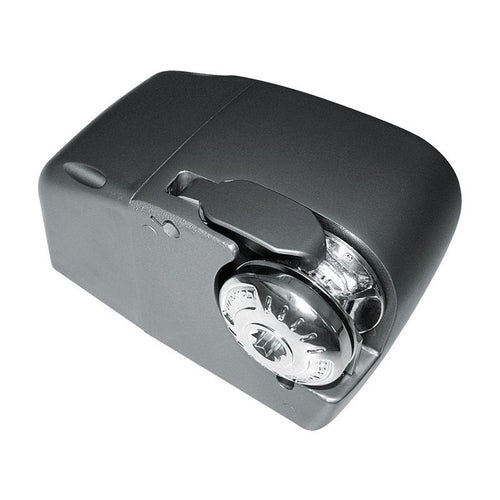

Lofrans Atlas Horizontal Windlass

The Lofrans Atlas Horizontal Windlass is designed for vessels 6m to 9m in length (up to 30 feet / 4.5 tonnes), offering reliable and efficient anchoring in a compact horizontal format. Manufactured in Italy from anodised aluminium, the Atlas is built for durability, easy installation, and low maintenance. Its above-deck motor and integrated solenoids simplify setup, while the spring-loaded rope and chain management system ensures smooth operation.

Main Features

• Marine Anodised Aluminium Body for superior corrosion resistance

• Suitable for vessels 6m to 9m (up to 4.5 tonnes)

• Manual Chain Release for quick and safe anchor deployment

• Rope and Chain Management by Spring-Loaded Arm

• Heavy-Duty Rated IP66 12V Electric Motor for reliable performance

• Chain Counter Pre-Setting included as standard

Technical Specifications

• Motor Power: 600W

• Power Supply: 12V DC

• Maximum Linear Load: 700kg (Lift Load 350kg)

• Line Retrieval Speed: Up to 69m/min

• Chain Compatibility: 6mm ISO, 6mm DIN 766, 3/16” BBB

• Rope Compatibility: 12mm / ½ inch

• Amps at Working Load: 60A

Standard Equipment

• Windlass Assembly

• Integrated Solenoids (built into case for easy installation)

• Rocker Switch

• Circuit Breaker

• Backing Plate

• Fixing Hardware

• Rope and Chain (as per vessel requirements)

Why Choose the Lofrans Atlas Horizontal Windlass?

The Atlas Horizontal Windlass is engineered for small vessels that demand reliable anchoring, easy installation, and low maintenance. Its compact design optimizes deck space, while the anodised aluminium construction and IP66 motor ensure long-lasting performance. Perfect for day cruising or weekend adventures, the Atlas delivers peace of mind and dependable operation on every voyage.
