LOFRANS Cayman 88 - Horizontal Aluminum

Cayman 88 Manual

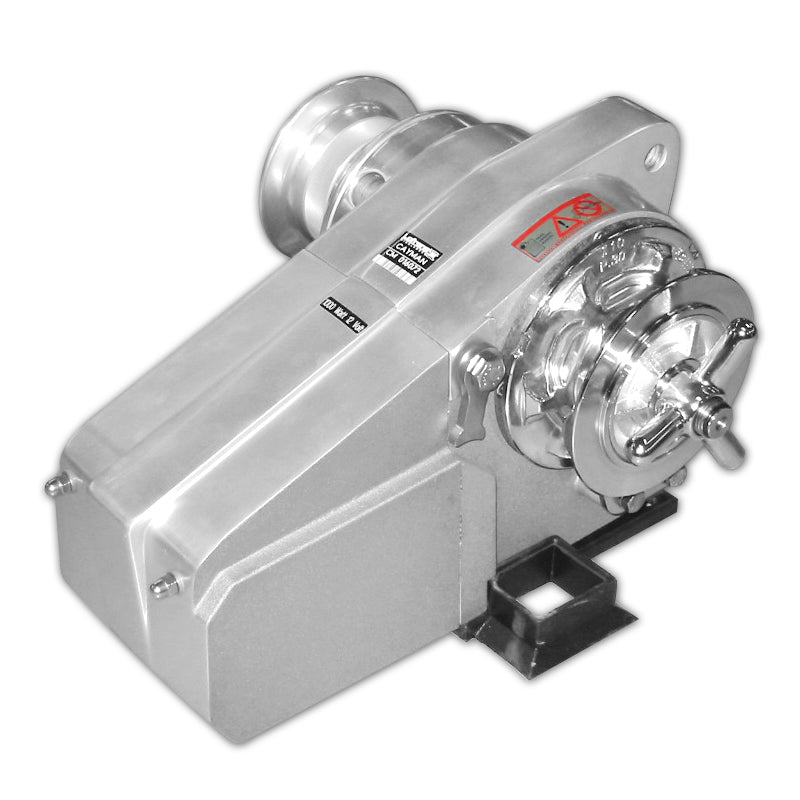

Lofrans Cayman 88 Horizontal Windlass – 220279 (12V) & 600175 (24V)

The Lofrans Cayman 88 Horizontal Windlass combines reliability, simplicity, and durability for vessels approximately 10 to 15 meters in length. Built with marine-grade aluminium alloy and designed for horizontal installation, it fits seamlessly on decks with limited below-deck space while delivering smooth and efficient anchoring. Available in anodised aluminium or polyester-coated finishes, the Cayman 88 blends classic design with robust performance.

Main Features

• Marine-Grade Aluminium Body for superior corrosion resistance

• Hot Forged Bronze Gypsy for enhanced mechanical strength

• Independent Gypsy and Drum Operation for versatile anchoring with rope and chain combinations

• Emergency Manual Override for backup operation

• Heavy-Duty IP66 Rated Electric Motor for reliable performance

• Available in 12V and 24V configurations

Technical Specifications

• Motor Power: 1700W (12V) / 2000W (24V)

• Power Supply: 12V / 24V DC

• Maximum Pull: 1600kg (12V) / 1800kg (24V)

• Working Load: 210kg (12V) / 270kg (24V)

• Max Line Speed at Working Load: 14m/min (12V) / 15m/min (24V)

• Max Line Speed: 30m/min

• Amps at Working Load: 180A (12V) / 110A (24V)

• Net Weight: 50kg

Standard Equipment

• Drum Winch Assembly

• Dual Direction Solenoid Pack

• Rocker Switch

• Circuit Breaker

• Backing Plate

• Fixing Hardware

• 70 Metres of Ø12mm 3-Strand Rope

• 8 Metres of Ø6mm Chain

Why Choose the Lofrans Cayman 88 Horizontal Windlass?

The Cayman 88 Horizontal Windlass is engineered for reliable performance and long-lasting durability. Its horizontal design maximizes deck space, while the high-quality aluminium and bronze components ensure smooth operation in all marine conditions. Ideal for coastal cruising or offshore anchoring, the Cayman 88 offers dependable operation and peace of mind on every voyage.
