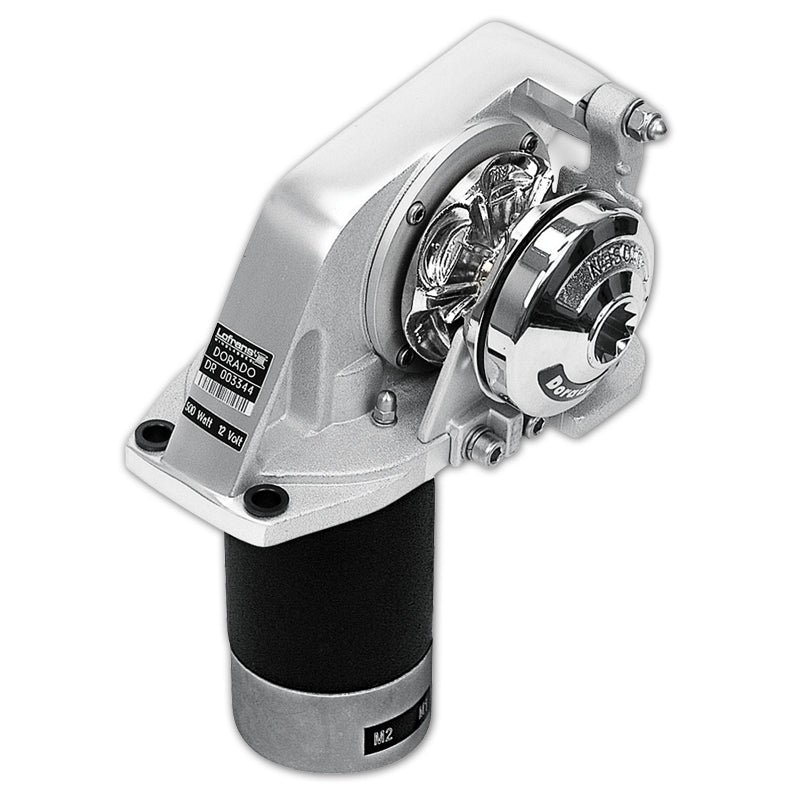

Lofrans Dorado Horizontal Windlass

The Lofrans Dorado Horizontal Windlass is designed for vessels approximately 12 to 18 meters in length, delivering reliable and efficient anchoring with a compact horizontal design. Its above-deck motor and gearbox make installation simple and maintenance easy, while the robust anodised aluminium construction ensures long-lasting performance even in harsh marine environments.

Main Features

• Marine Anodised Aluminium Body for superior corrosion resistance

• Made from Special Grade Aluminium for enhanced durability

• Manual Chain Release for quick and safe anchor deployment

• Rope and Chain Management by the Spring-Loaded Arm

• Heavy-Duty Rated IP66 Electric Motor for reliable performance

• Optional Automatic Free Fall available

• Control Box included in the package

Technical Specifications

• Motor Power: 1700W

• Power Supply: 12V DC

• Maximum Pull: 1600kg

• Working Load: 220kg

• Max Line Speed at Working Load: 14m/min

• Max Line Speed: 33m/min

• Amps at Working Load: 210A

• Net Weight: 56kg

Standard Equipment

• Windlass Assembly filled with oil

• Dual Direction Solenoid Pack

• Rocker Switch

• Circuit Breaker

• Backing Plate

• Fixing Hardware

• 70 Metres of Ø12mm 3-Strand Rope

• 8 Metres of Ø6mm Chain

• Control Box

Why Choose the Lofrans Dorado Horizontal Windlass?

The Lofrans Dorado Horizontal Windlass combines precision engineering, durability, and ease of use. Its horizontal design optimizes deck space while the robust construction ensures dependable anchoring in all marine conditions. Perfect for both coastal and offshore navigation, the Dorado provides peace of mind and reliable performance on every voyage.
