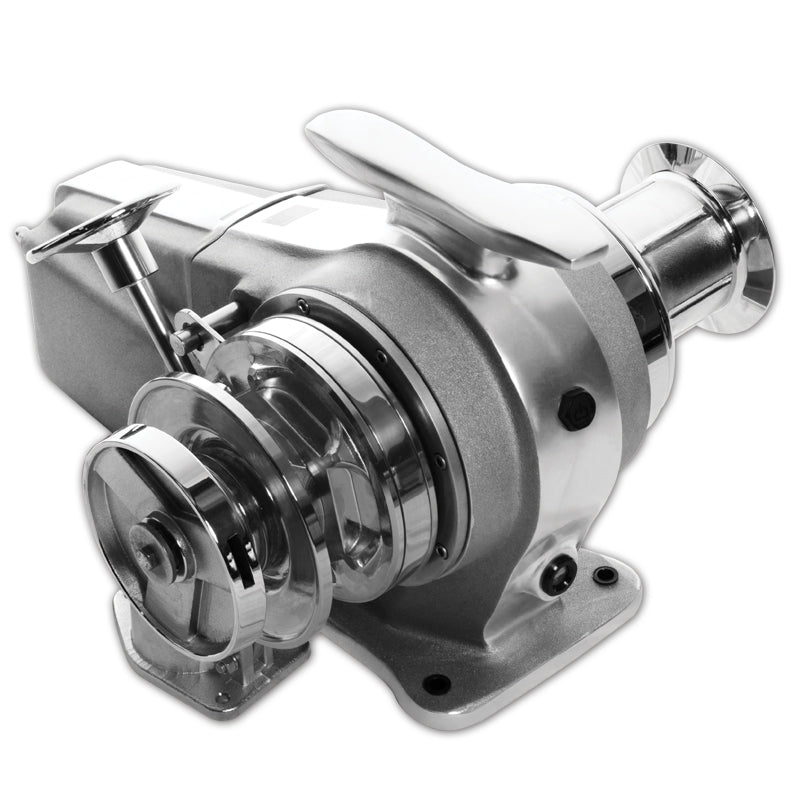

LOFRANS Falkon - Horizontal Windlass Aluminum G+D (1700W / 12V or 24V)
Title
Falkon Manual | Falkon 3D Drawings
Lofrans Horizontal Windlass

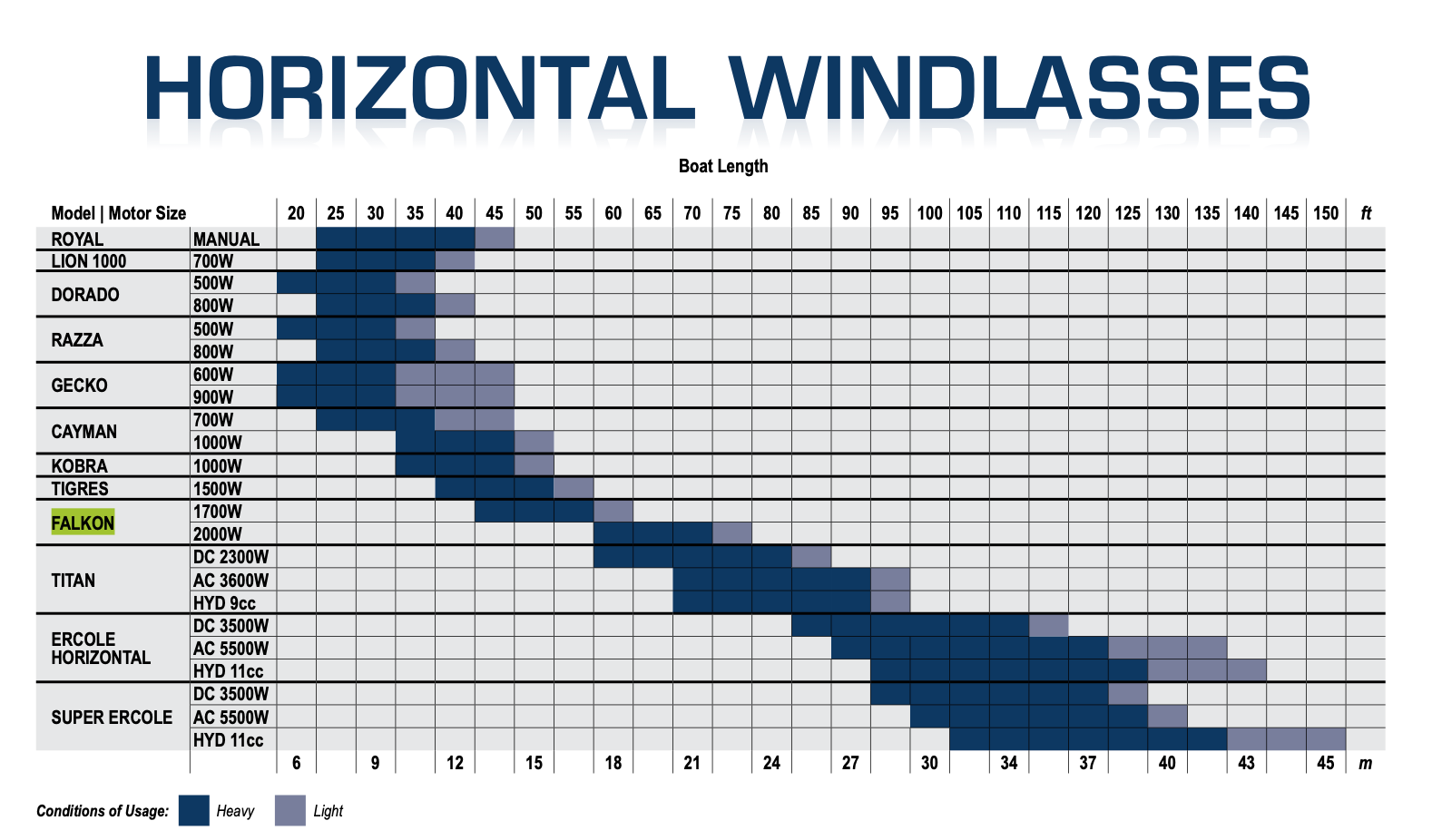

Designed for vessels approximately 13 to 18 meters in length, the Lofrans Horizontal Windlass delivers reliable and efficient anchoring with a space-saving design. Its horizontal rotation ensures smooth operation, making it ideal for installations with limited deck or chain locker space.
Main Features
-
Marine Anodised Aluminium Body for superior corrosion resistance
-
Independent Gypsy and Drum Operation for versatile anchoring with rope and chain combinations
-
Manual Chain Release for quick and easy anchor deployment
-
Manual Override for backup operation in case of power failure
-
Heavy-Duty Rated IP67 Electric Motor for reliable performance under harsh marine conditions

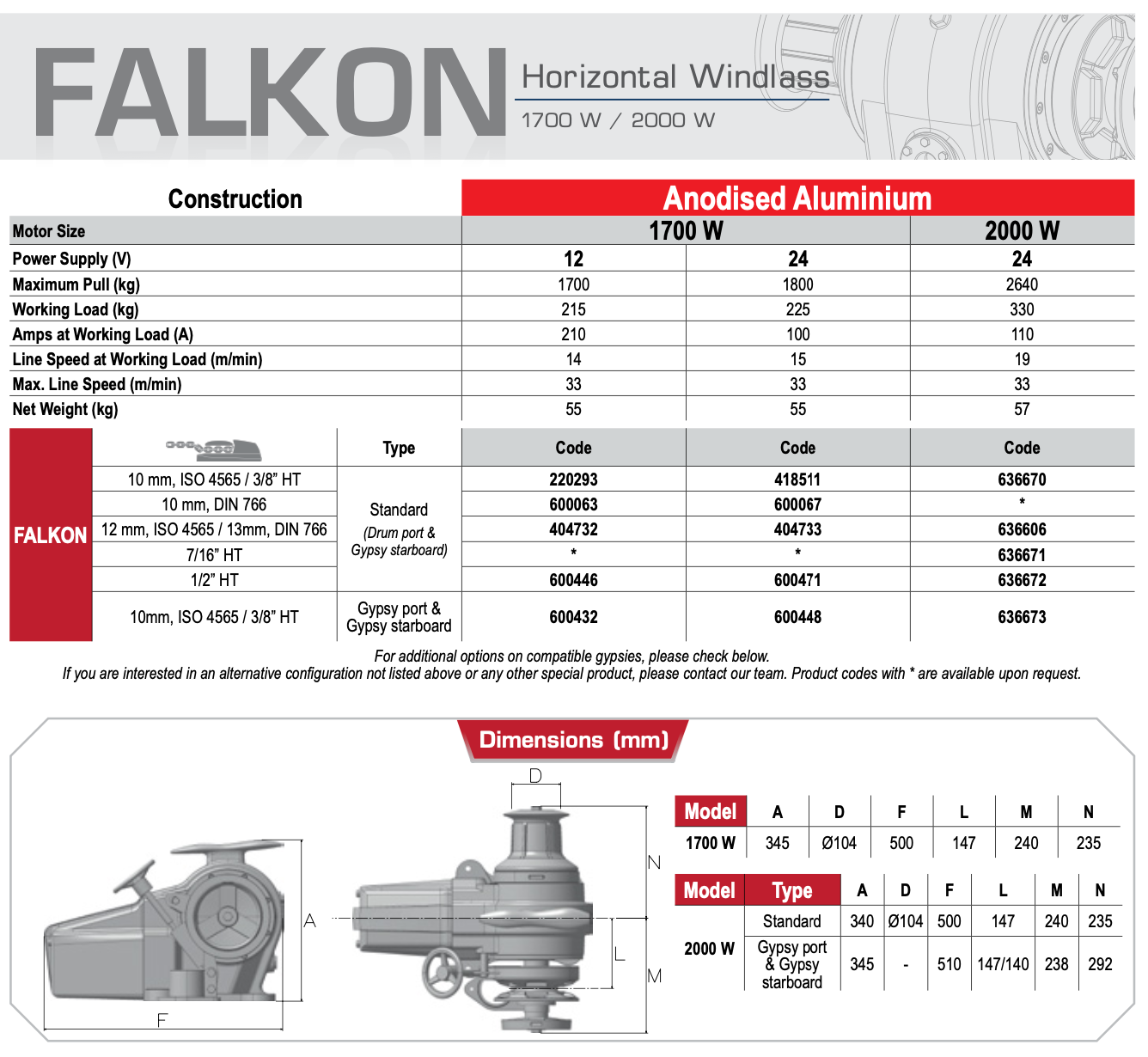

Technical Specifications
-
Motor Power: 1700W (12V) / 2000W (24V)
-
Power Supply: 12V / 24V DC
-
Maximum Pull: 1700kg (12V) / 1800kg (24V)
-
Working Load: 215kg (12V) / 225kg (24V)
-
Max Line Speed at Working Load: 14m/min (12V) / 15m/min (24V)
-
Max Line Speed: 33m/min
-
Amps at Working Load: 210A (12V) / 100A (24V)
-
Net Weight: 55kg
Standard Equipment
-
Drum Winch Assembly
-
Dual Direction Solenoid Pack
-
Lever
Why Choose the Lofrans Horizontal Windlass?
The Lofrans Horizontal Windlass is engineered for performance and durability. Its horizontal design optimizes deck space while the robust construction ensures reliable anchoring in all marine conditions. Perfect for coastal or offshore navigation, this windlass provides peace of mind on every voyage.
