LOFRANS Falkon - Horizontal Windlass Aluminum G+D (2000W/24V)
LOFRANS Falkon - Horizontal Windlass Aluminum G+D (2000W/24V)
LOFRANS Falkon - Horizontal Windlass Aluminum G+D (2000W/24V)

Lofrans

LOFRANS Falkon - Horizontal Windlass Aluminum G+D (2000W/24V)

Sale price$9,798.75

Tax included

SKU: 636606
Quantity:
Only 2 units left
Falkon Manual | Falkon 3D Drawings

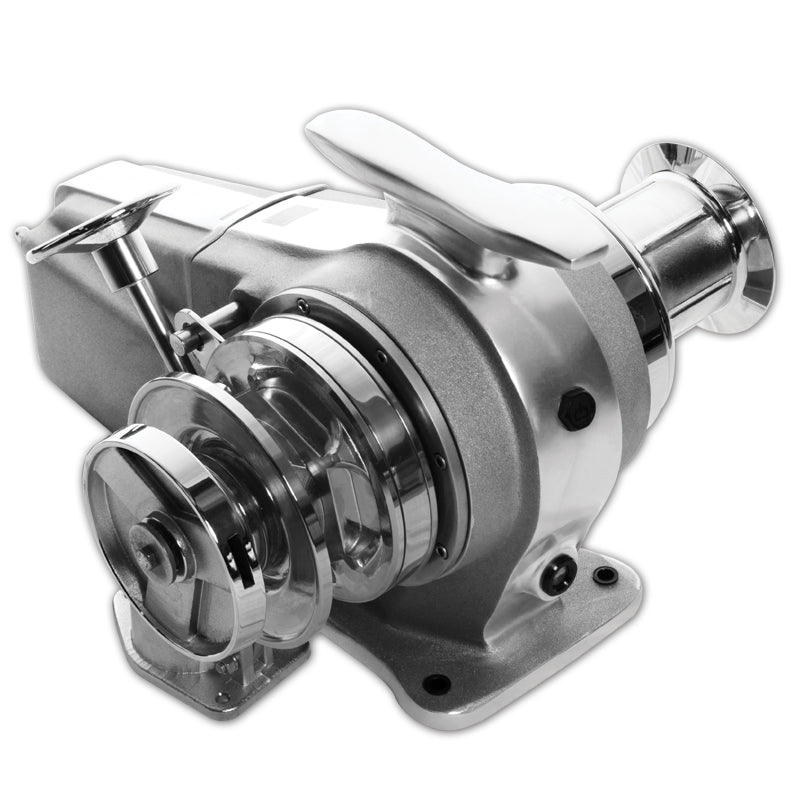

Lofrans Falkon Horizontal Windlass – Aluminium

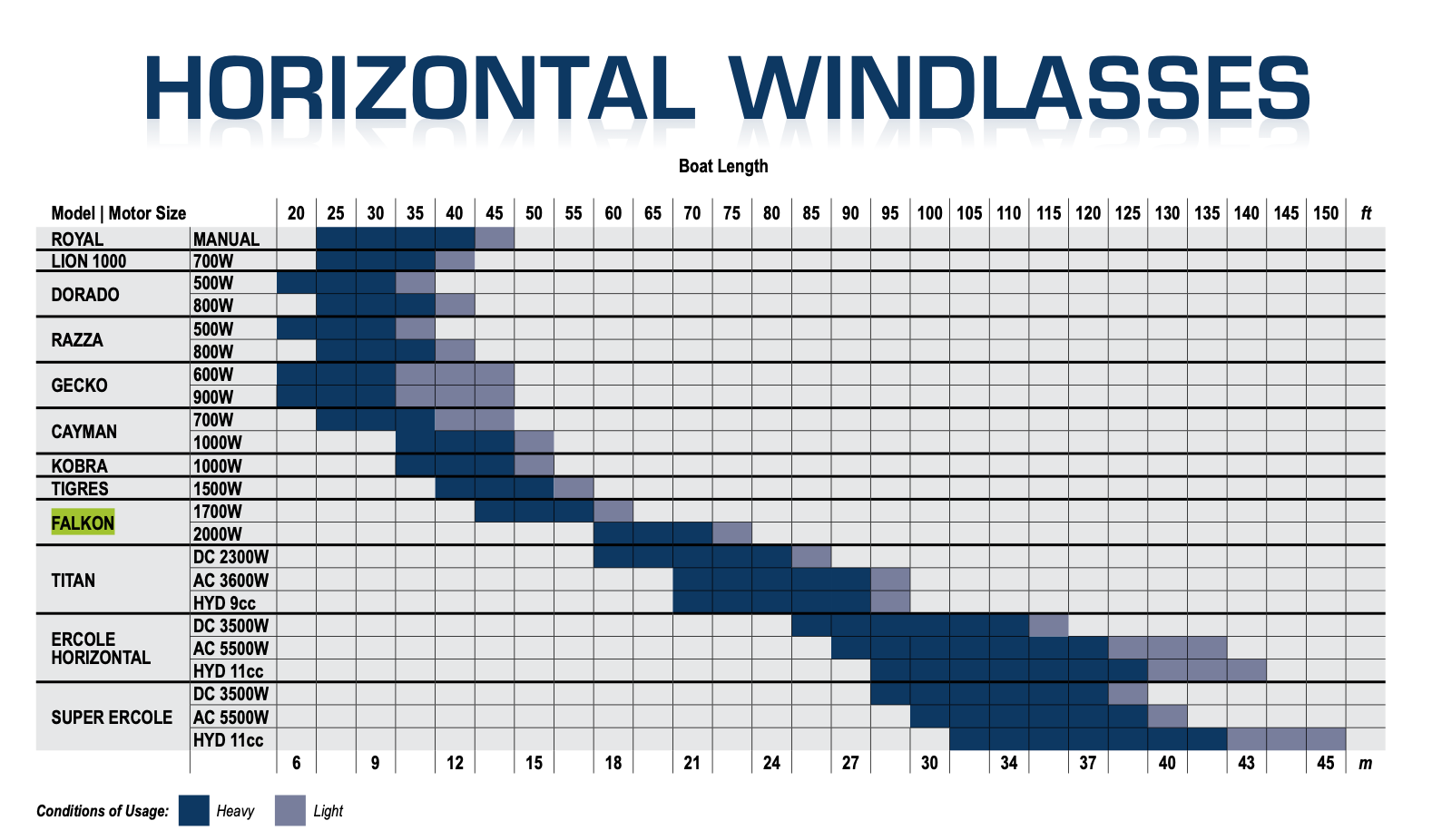

Designed for vessels approximately 13 to 18 meters in length, the Lofrans Falkon Horizontal Windlass offers robust performance with a space-saving design. Its horizontal rotation ensures efficient anchoring, making it ideal for installations with limited deck or chain locker space.

Main Features
  • Marine Anodised Aluminium Body: Provides exceptional corrosion resistance for longevity.

  • Independent Gypsy and Drum Operation: Allows for versatile anchoring with rope and chain combinations.

  • Manual Chain Release: Enables quick and easy anchor deployment.

  • Manual Override: Provides backup operation in case of power failure.

  • Heavy-Duty Rated IP67 Electric Motor: Ensures reliable performance under harsh marine conditions.

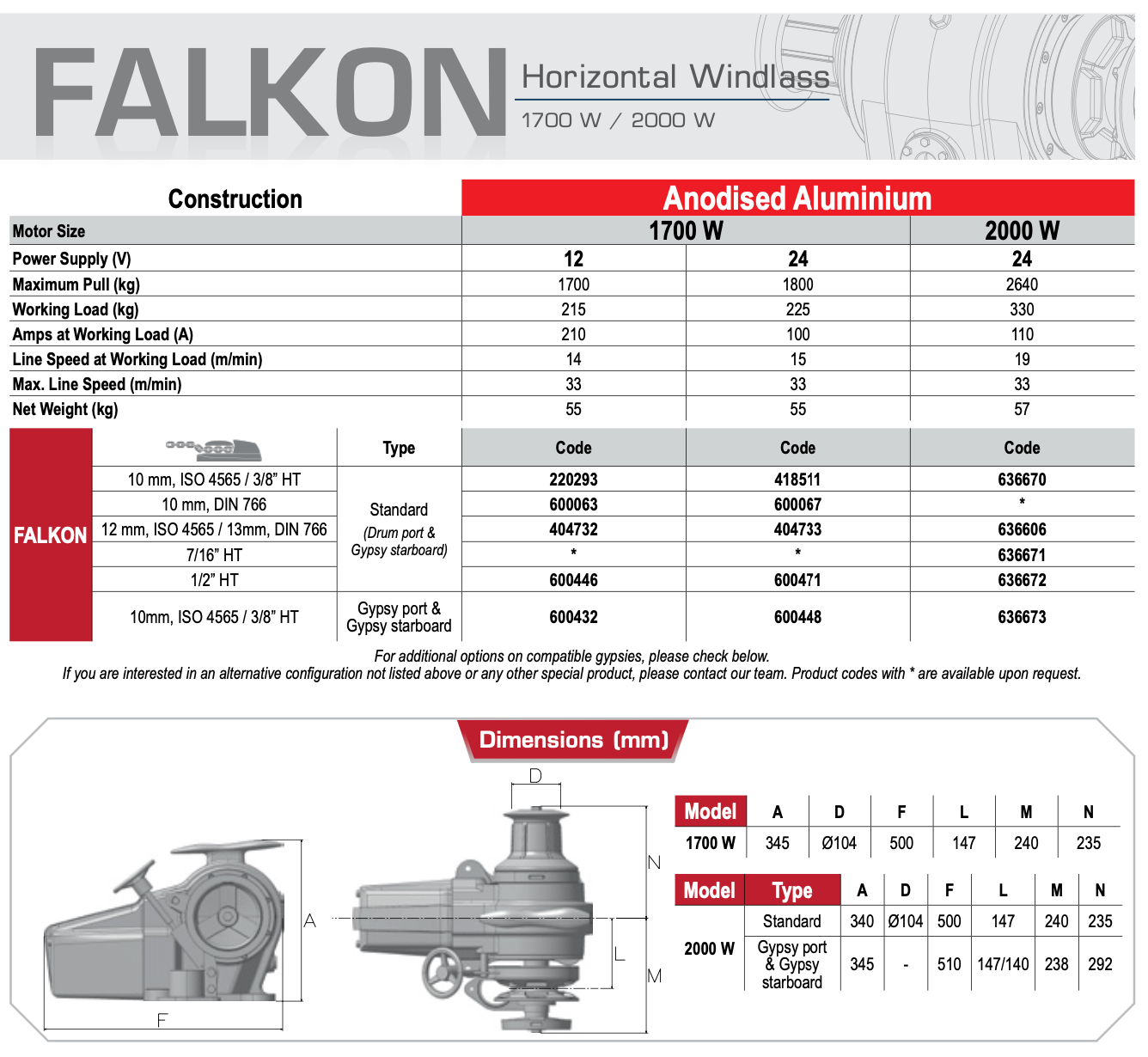

Technical Specifications
  • Motor Size: 2000W

  • Power Supply: 24V DC

  • Max Line Speed at Working Load: 19 m/min

  • Max Line Speed: 33 m/min

  • Maximum Pull: 2640 kg

  • Working Load: 330 kg

  • Amps at Working Load: 110A

  • Net Weight: 57 kg

  • Model Type: Dual Gypsy and Drum

Standard Equipment
  • Drum Winch Assembly

  • Dual Direction Solenoid Pack

  • Lever
Why Choose the Lofrans Falkon Horizontal Windlass?

The Lofrans Falkon Horizontal Windlass is engineered for performance and durability. Its horizontal design optimises deck space, while the robust construction ensures reliable anchoring in various marine conditions. Whether you're navigating coastal waters or embarking on offshore adventures, the Falkon Horizontal Windlass provides peace of mind on every voyage.
