LOFRANS Kobra Horizontal Windlass Aluminum (12V or 24V)

Kobra Manual | Kobra 3D Drawings

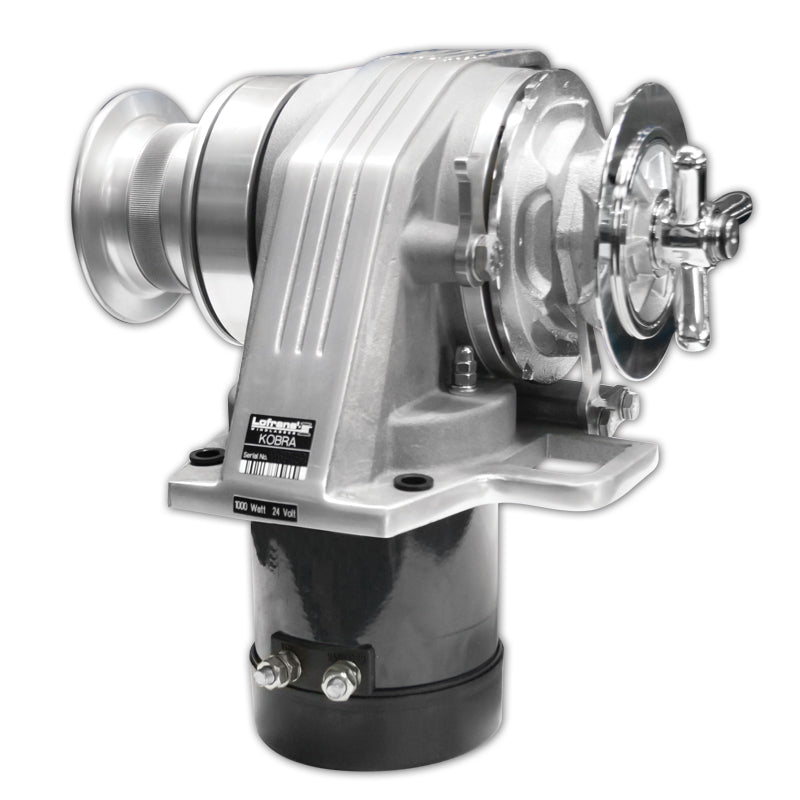

Lofrans Kobra Horizontal Windlass

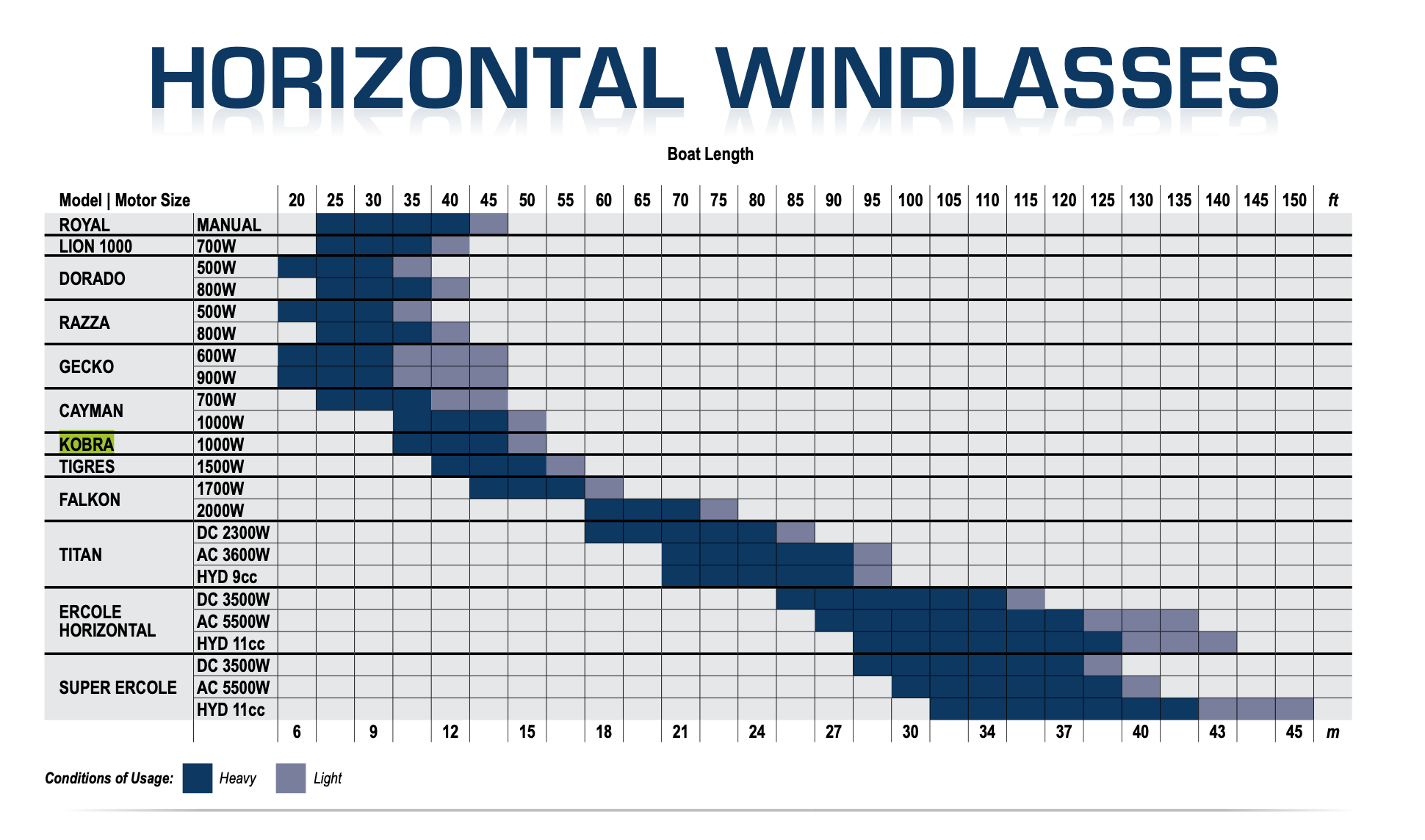

The Lofrans Kobra Horizontal Windlass is designed for vessels approximately 12 to 18 meters in length, providing reliable and efficient anchoring in a compact horizontal format. With its above-deck motor and gearbox, it is ideal for boats with limited below-deck space, offering easy installation and low maintenance. Constructed from marine-grade anodised aluminium, the Kobra is built to withstand harsh marine environments while ensuring smooth and consistent operation.

Main Features

• Marine Anodised Aluminium Body for superior corrosion resistance

• Independent Gypsy and Drum Operation for versatile anchoring with rope and chain combinations

• Manual Chain Release for quick and safe anchor deployment

• Manual Override for backup operation

• Heavy-Duty Rated IP56 Electric Motor for reliable performance

• Optional Automatic Free Fall available for both 12V and 24V models

Technical Specifications

• Motor Power: 1700W (12V) / 2000W (24V)

• Power Supply: 12V / 24V DC

• Maximum Pull: 1250kg (12V) / 1325kg (24V)

• Working Load: 170kg

• Max Line Speed at Working Load: 32m/min (12V) / 33m/min (24V)

• Amps at Working Load: 210A (12V) / 100A (24V)

• Net Weight: 21kg

Standard Equipment

• Windlass Assembly filled with oil

• Dual Direction Solenoid Pack

• Handle or Lever

• Desk seal / gasket

Why Choose the Lofrans Kobra Horizontal Windlass?

The Lofrans Kobra Horizontal Windlass offers a combination of durability, precision engineering, and ease of use. Its horizontal design optimizes deck space, while the robust anodised aluminium construction and high-quality motor ensure dependable performance in all marine conditions. Ideal for both coastal and offshore navigation, the Kobra provides peace of mind and reliable anchoring on every voyage.
