LOFRANS Tigres - Horizontal Aluminum (12V or 24V)

Tigres Manual

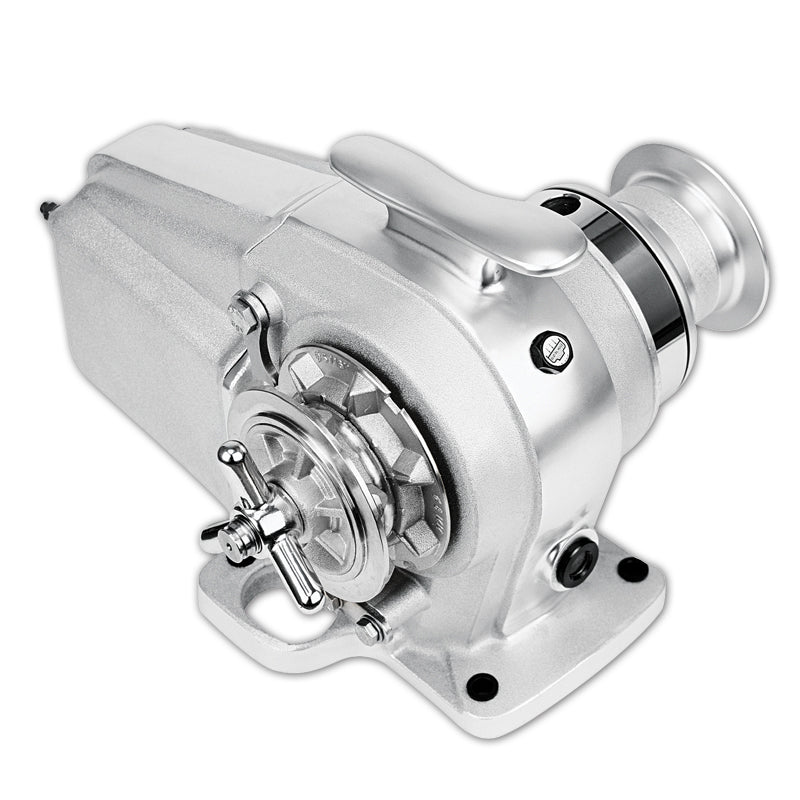

Lofrans Tigres Horizontal Windlass – 600055 (12V) & 600059 (24V)

The Lofrans Tigres Horizontal Windlass is a popular choice for boats ranging from 11 to 15 meters (36’–49’). Designed for vessels with limited below-deck space, its horizontal rotation keeps the motor and gearbox above deck, simplifying installation while ensuring reliable and efficient anchoring. Constructed from marine-grade anodised aluminium, the Tigres is durable and built to withstand harsh marine environments.

Main Features

• Marine Anodised Aluminium Body for superior corrosion resistance

• Independent Gypsy and Drum Operation for versatile anchoring with rope and chain combinations

• Manual Chain Release for quick and safe anchor deployment

• Manual Override for backup operation in case of power failure

• Heavy-Duty Rated IP67 Electric Motor for reliable performance

• Available in 12V and 24V configurations

• Optional Automatic Free Fall available for both 12V and 24V models

Technical Specifications

• Motor Power: 2000W (12V) / 2300W (24V)

• Power Supply: 12V / 24V DC

• Maximum Pull: 1800kg (12V) / 2000kg (24V)

• Working Load: 280kg (12V) / 330kg (24V)

• Max Line Speed at Working Load: 15m/min (12V) / 16m/min (24V)

• Max Line Speed: 35m/min

• Amps at Working Load: 190A (12V) / 100A (24V)

• Net Weight: 58kg

Standard Equipment

• Drum Winch Assembly

• Dual Direction Solenoid Pack

• Rocker Switch

• Circuit Breaker

• Backing Plate

• Fixing Hardware

• 70 Metres of Ø12mm 3-Strand Rope

• 8 Metres of Ø6mm Chain

Why Choose the Lofrans Tigres Horizontal Windlass?

The Tigres Horizontal Windlass combines durability, power, and ease of installation. Its above-deck motor and gearbox design make it ideal for vessels with limited below-deck space, while the robust anodised aluminium construction ensures long-lasting performance. Perfect for both coastal and offshore anchoring, the Tigres provides dependable operation and peace of mind on every voyage.
