LOFRANS Titan - Horizontal Windlass Aluminum (T.B G+D | 2300W/24V | 12-13DIN766)

Titan Manual | Titan 3D Drawings

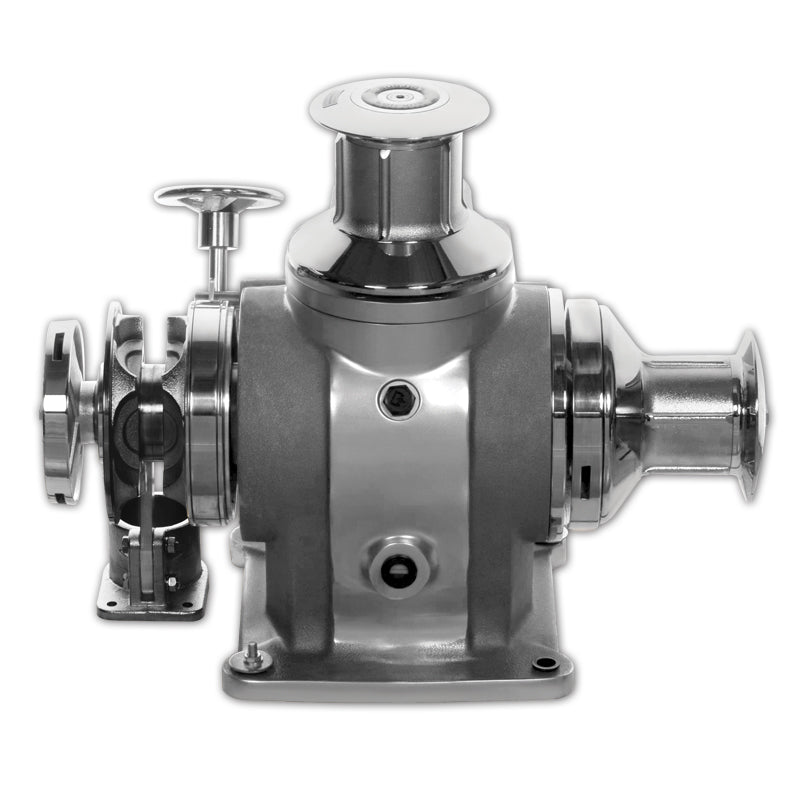

Lofrans Titan Horizontal Windlass – Aluminium

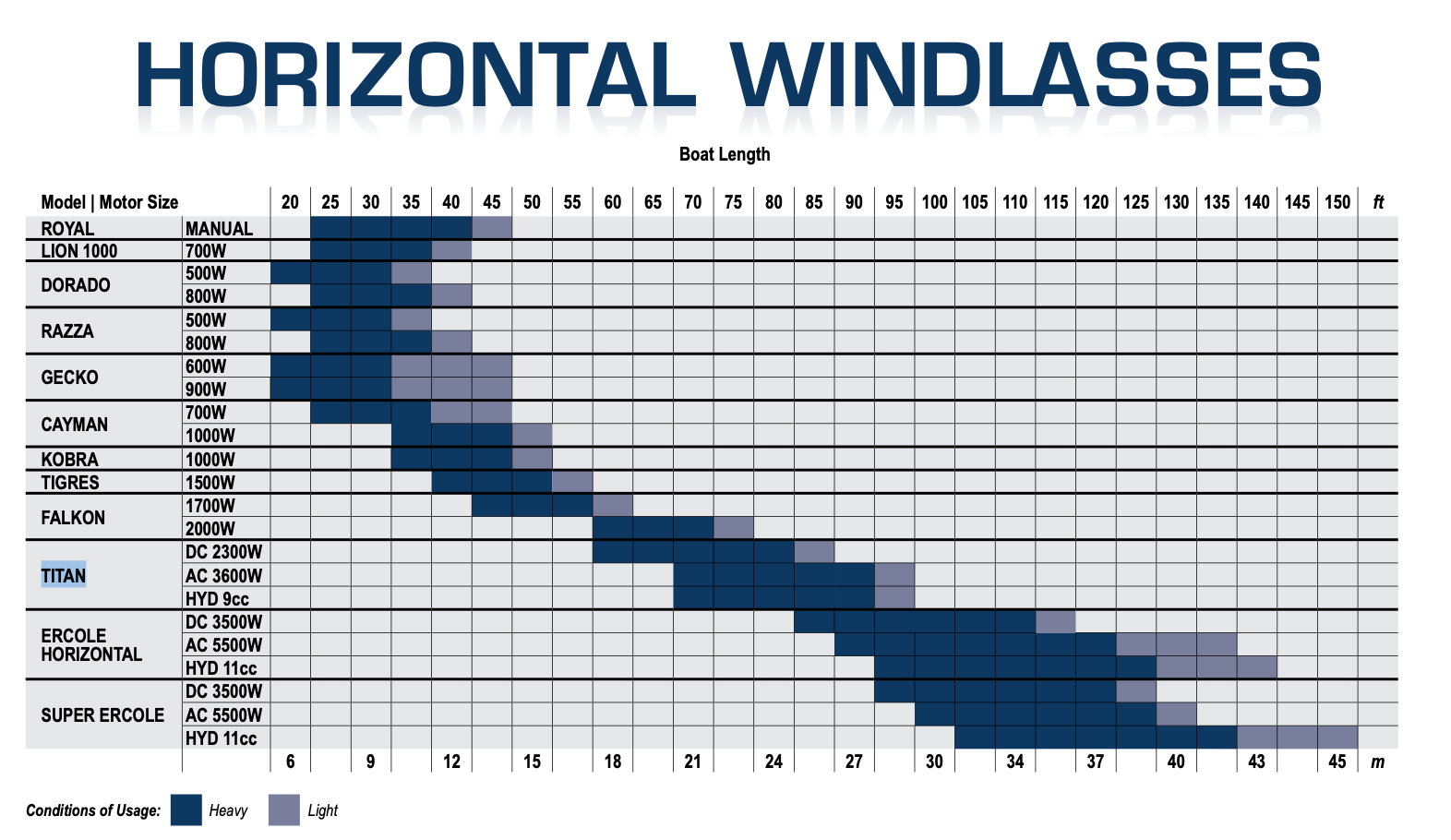

Designed for vessels approximately 17 to 27 meters in length, the Lofrans Titan Horizontal Windlass offers robust performance with a space-saving design. Its horizontal rotation ensures efficient anchoring, making it ideal for installations with limited deck or chain locker space.

Main Features

• Marine Aluminium Anodised Body: Provides exceptional corrosion resistance for longevity.

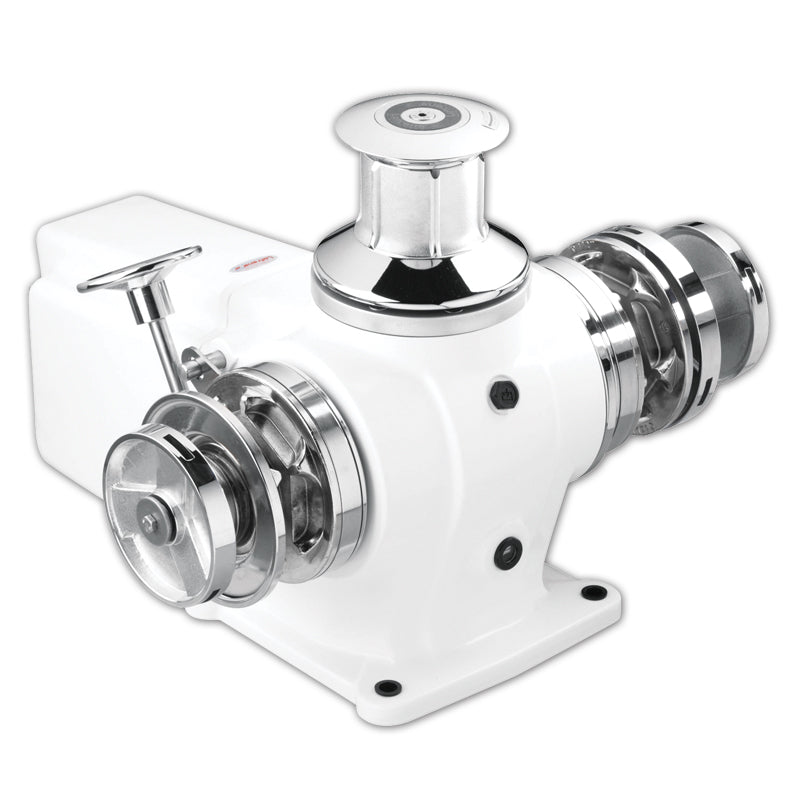

• Available in White Polyester Coating: Offers an aesthetic finish that complements various deck styles.

• Independent Gypsy and Drum Operation: Allows for versatile anchoring with rope and chain combinations.

• Manual Chain Release: Enables quick and easy anchor deployment.

• Manual Override: Provides backup operation in case of power failure.

• Heavy-Duty Rated IP66 Electric Motor: Ensures reliable performance under harsh marine conditions.

Technical Specifications

• Motor Size: 2300W

• Power Supply: 24V DC

• Max Line Speed at Working Load: 10 m/min

• Max Line Speed: 18 m/min

• Maximum Pull: 2800 kg

• Working Load: 430 kg

• Amps at Working Load: 140A

• Net Weight: 115 kg

• Model Type: A

Standard Equipment

• Drum Winch Assembly

• Dual Direction Solenoid Pack

• Rocker Switch

• Circuit Breaker

• Backing Plate

• Fixing Hardware

• 70 Metres of Ø12mm 3-Strand Rope

• 8 Metres of Ø6mm Chain

Why Choose the Lofrans Titan Horizontal Windlass?

The Lofrans Titan Horizontal Windlass is engineered for performance and durability. Its horizontal design optimizes deck space, while the robust construction ensures reliable anchoring in various marine conditions. Whether you're navigating coastal waters or embarking on offshore adventures, the Titan Horizontal Windlass provides peace of mind on every voyage.
