LOFRANS X5 - Vertical Chrome Bronze

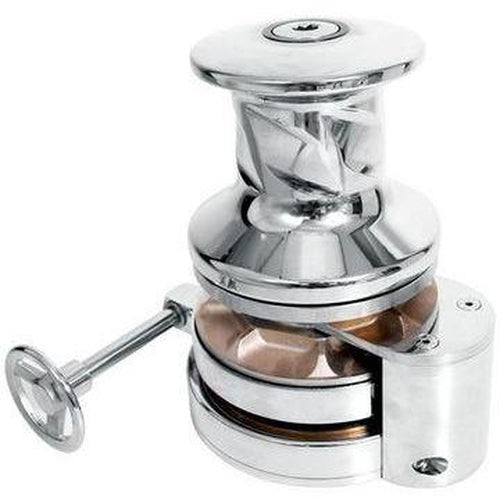

Lofrans X5 Vertical Windlass

The Lofrans X5 Vertical Windlass is engineered for vessels approximately 18 to 27 meters in length, providing powerful, reliable, and effortless anchoring. Built from high-quality chrome bronze, it delivers exceptional corrosion resistance and long-lasting performance even in the harshest marine environments. Its vertical design saves deck space while offering intuitive operation and flexibility for rope, chain, or combined systems.

Main Features

• Luxury Chrome Bronze Base and Drum for durability and corrosion resistance

• Independent Gypsy and Drum Operation for versatile anchoring with rope and chain combinations

• Rope and Chain Combination Gypsy

• Manual Chain Release for quick and safe anchor deployment

• Manual Override for backup operation in case of electric failure

• Rope and Chain Management by Spring-Loaded Arm

• Chain Counter Magnet Pre-Installed as Standard

• Heavy-Duty IP67 Rated Electric Motor

• Anodised Marine Aluminium Gearbox

Technical Specifications

• Motor Power: 2000W / 24V DC

• Suitable Vessel Length: 18–27m

• Maximum Pull: 2500kg

• Working Load: 350kg

• Max Line Speed at Working Load: 16m/min

• Max Line Speed: 33m/min

• Net Weight: 90kg

Standard Equipment

• Windlass Assembly

• Dual Direction Solenoid Pack

• Rocker Switch

• Circuit Breaker

• Backing Plate

• Fixing Hardware

• Rope and Chain (as per vessel requirements)

Why Choose the Lofrans X5 Vertical Windlass?

The Lofrans X5 Vertical Windlass combines high-end performance, durability, and user-friendly operation. Its chrome bronze construction and precision engineering ensure reliable anchoring for large vessels, while the vertical design optimizes deck space. Perfect for long voyages or demanding marine conditions, the X5 provides peace of mind and effortless anchoring on every trip.
