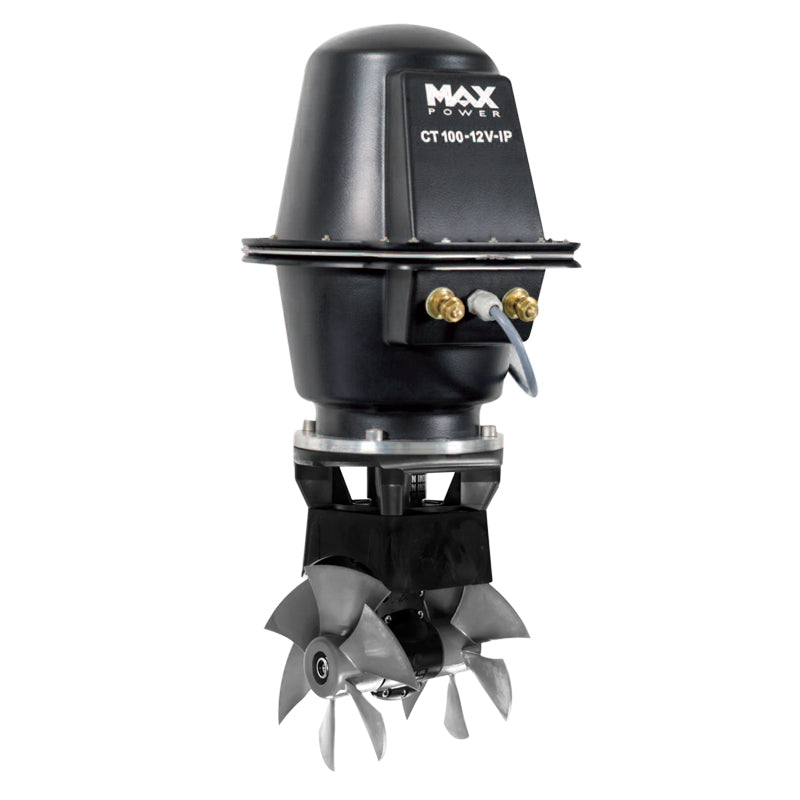

MAX POWER Ignition Protected Tunnel Thruster CT100-IP (12V)

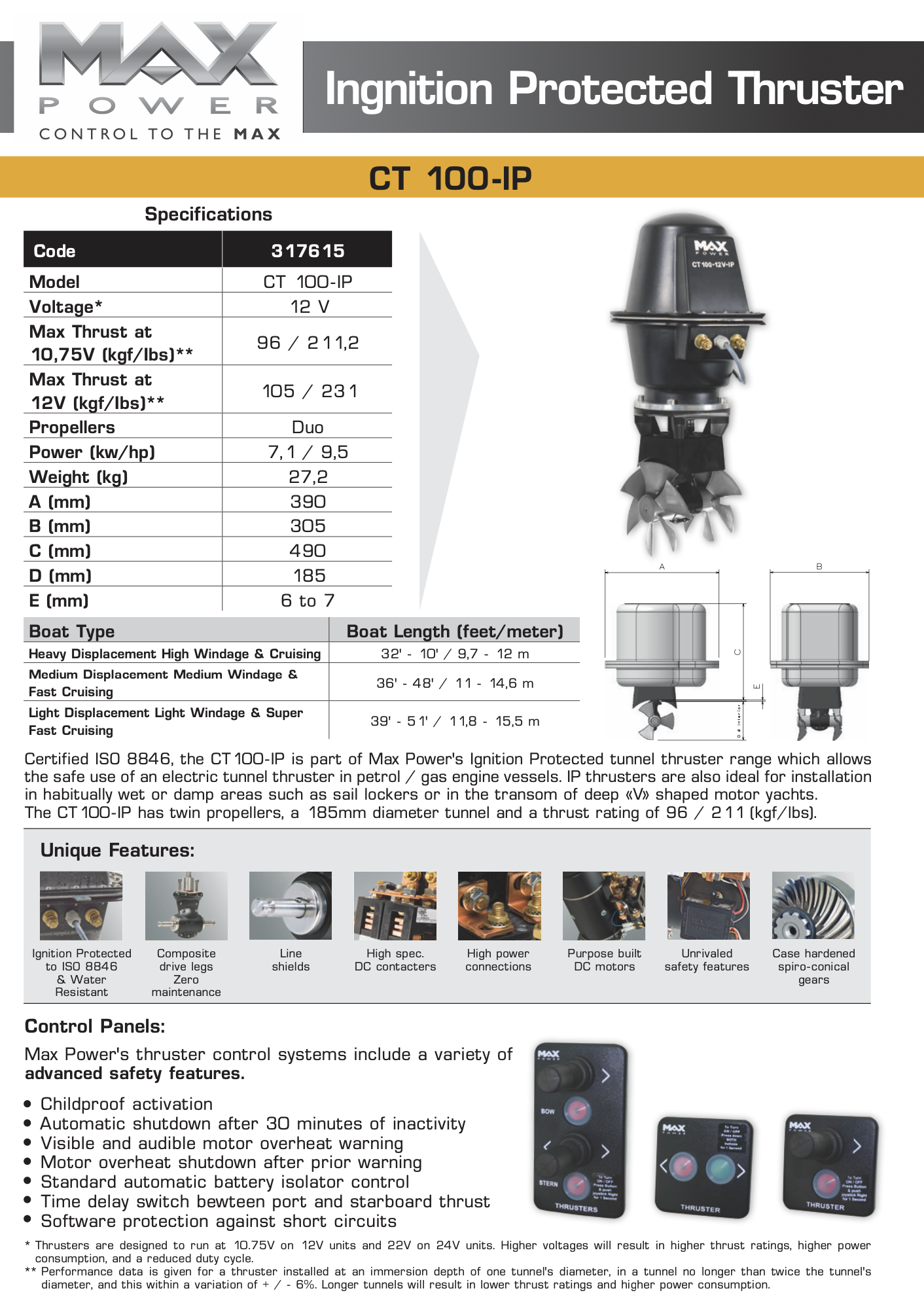

CT100-IP Manual
Ignition protected thrusters are ideal for motor boats. Their unique feature is the totally sealed housing around every electric part, this feature provides optimal ignition protection because it doesn't allow any fuel fumes enter the electric parts and cause spark ignition. In addition, the sealed housing prevents water and humidity from entering the electric parts area and keeps it dry.
The 12V, twin propeller CT100-IP suits a wide range of motor boats and deep footed sailing yachts ranging from 30’-53’. This composite Ignition Protected thruster has a tunnel diameter of 185mm and a thrust rating up to 90/198 (kg/lbs). The CT100-IP, like all Max Power Ignition Protected tunnel thrusters, is maintenance free, benefits from a long lifespan and integrates all the unique features of this range.
Features
- Ignition protected ISO 8846 and water resistant
- Easy to connect to thruster
- Patented composite drive leg
- Zero maintenance
- Case hardened spiro-conical gears
- Line shields
- Purpose built DC motors
- Electronic control boxes for unrivalled safety features
- Safe, high power connections
- Purpose built high specification DC contactors
