MAX POWER Thruster CT225 (24V)
MAX POWER Thruster CT225 (24V)
8c Tawa Drive
8c Tawa Drive
AUK
Auckland 0632
New Zealand
CT225 Manual
Max Power offers a complete range of 12 / 24V composite electric tunnel thrusters to suit motor yachts & deep footed sailing yachts. Designed for maximum performance and durability, each model is easy to fit, highly cost effective, and integrates a variety of unique features.

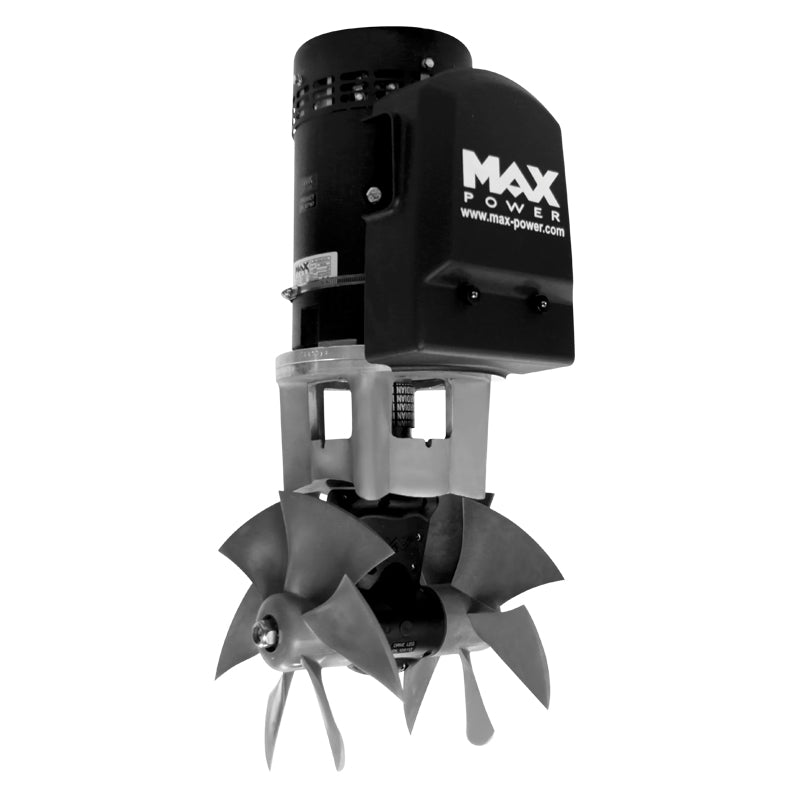

The CT225 is the most powerful 250mm diameter electric tunnel thruster on the market, with a thrust rating up to 200/440 (kg/lbs), and is also the largest composite thruster in the Max Power electric tunnel thruster range. Suitable for motor yachts and deep footed sailing yachts ranging from 44’-68’ this model is fitted as standard on large variety of yachts.
The CT225, like all Max Power electric tunnel thrusters, is maintenance free, benefits from a long lifespan and integrates all the unique features of this range
Features
- Patented composite drive legs that are pre-filled with oil and then sealed for life for zero maintenance
- Corrosion free composite drive legs eliminate the need for anodes and offer high manufacturing tolerances
- Case hardened spiro-conical gears guarantee a silent, smooth operation, and a long life span
- High efficiency purpose built DCmotors ensuring outstanding performance and long runtime ratings
- Stainless steel protection caps secure the seals from fishing lines
- Solid copper contact bars guarantee safe & high power connections
- Electronic control boxes for unrivalled safety features
- Safe, high-power connections
- Purpose-built DC contractors are both safe and durable
- Electric control boxes offer unique & unrivalled safety features
CT225 compatible Max Power Accessories, NOT included:
- Battery Isolator, recommended to validate your MAX Power warranty, part number 318400
- 1 x Single Joystick, part number 318202
- 1 x 160 amp Fuse Holder, part number 35017
- 1 x Compatible Fuse, 12 volt part number 35019, 24 volt part number 35021
- Fibreglass tunnel, 125mm diameter, available in lengths from 0.75 - 2.5 metres e.g. 750mm part number 42547
- Cable, available to purchase by the metre, part number 312781
