Max Power
MAX POWER Thruster CT35 (12V)

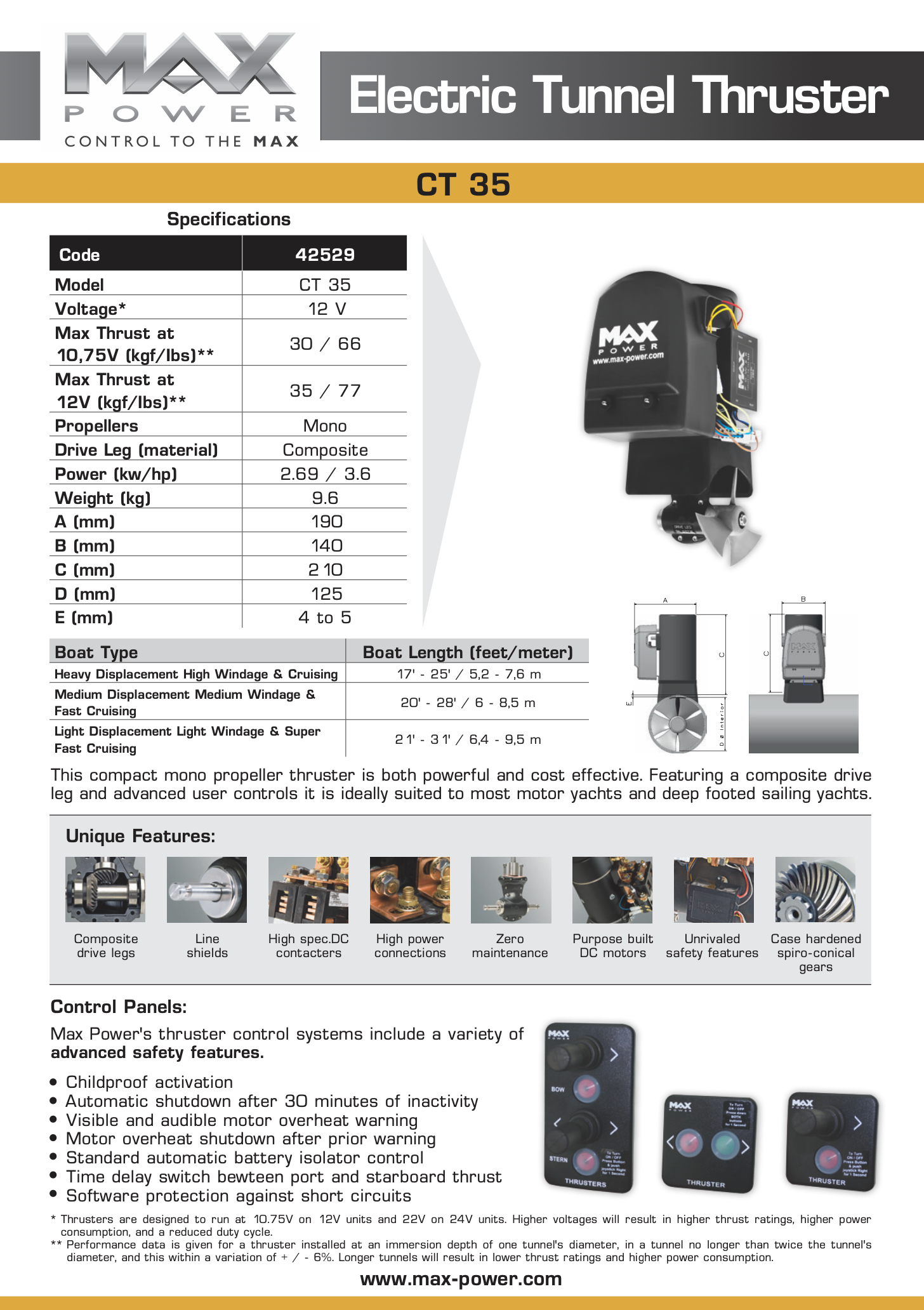

CT35 Manual
Max Power offers a complete range of 12 / 24V composite electric tunnel thrusters to suit motor yachts & deep footed sailing yachts. Designed for maximum performance and durability, each model is easy to fit, highly cost effective, and integrates a variety of unique features.

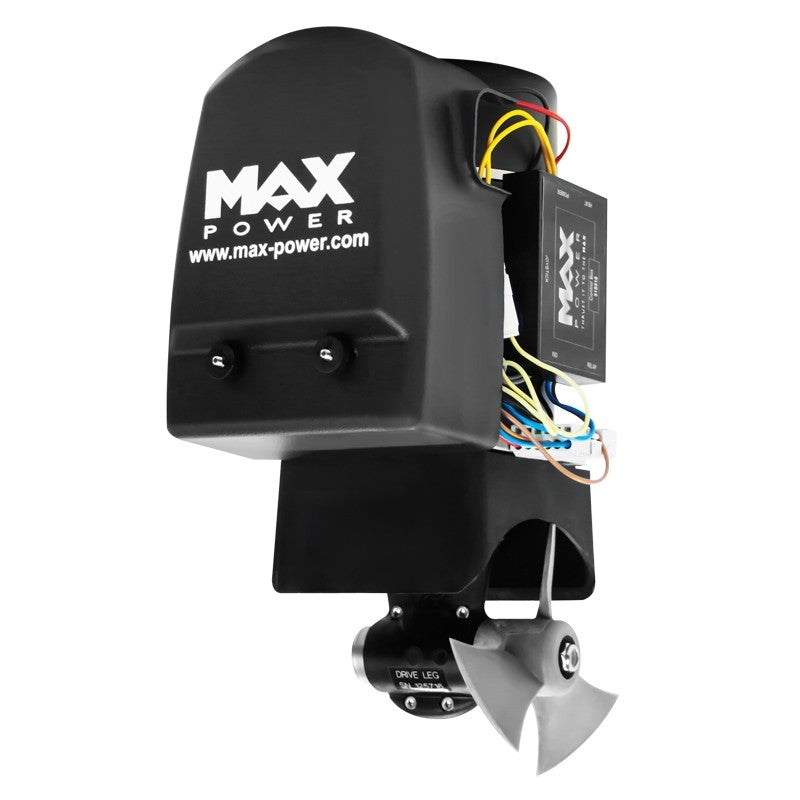

Manufactured using composite materials, the CT35 is a single propeller thruster with a 125mm diameter tunnel and thrust rating up to 35/75 (kg/lbs). The smallest in the Max Power electric tunnel thruster range, the CT35 is ideally suited to motor boats and deep footed sailing yachts that are between 17’-34'.
The CT35, like all Max Power electric tunnel thrusters, is maintenance free, benefits from a long lifespan and integrates most of the unique features of this range
Features
-
Simple, trouble free installation
-
Boat Length: 5.2-9.5 metres
-
Zero maintenance
-
Patented composite drive legs
-
Case hardened spiro-conical gears
-
Line shields
-
Purpose-built DC motors
-
Electronic control boxes are an industry leading safety factor
-
Safe, high-power electrical circuit connections
-
Purpose-built high specification DC contactors
-
All Max Power electric tunnel unique features included
CT35 compatible Max Power Accessories, NOT included:
-
Single Joystick, part number 318202
-
Fuse Holder, part number 35017
-
Compatible 125 amp Fuse, part number 35021
-
Battery Isolator, recommended to validate your MAX Power warranty, part number 318400
-
Fibreglass tunnel, 125mm diameter, available in lengths from 0.75 - 2.5 metres e.g. 750mm part number 42547
-
Cable, available to purchase by the metre, part number 312781
