MAX POWER Thruster CT80 (12V or 24V)
Title
CT80 Manual
Max Power offers a complete range of 12 / 24V composite electric tunnel thrusters to suit motor yachts & deep footed sailing yachts. Designed for maximum performance and durability, each model is easy to fit, highly cost effective, and integrates a variety of unique features.

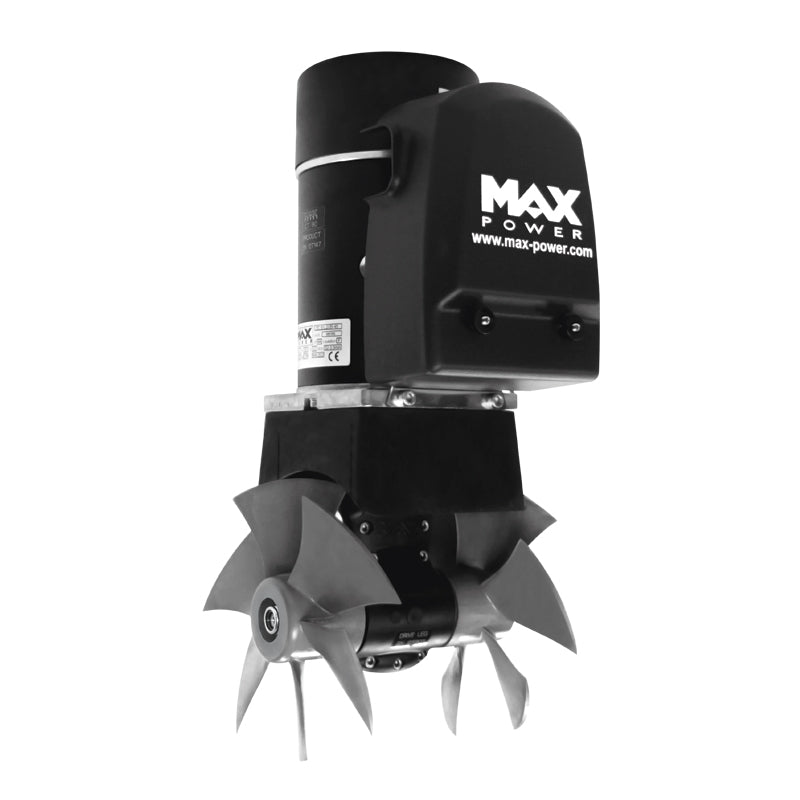

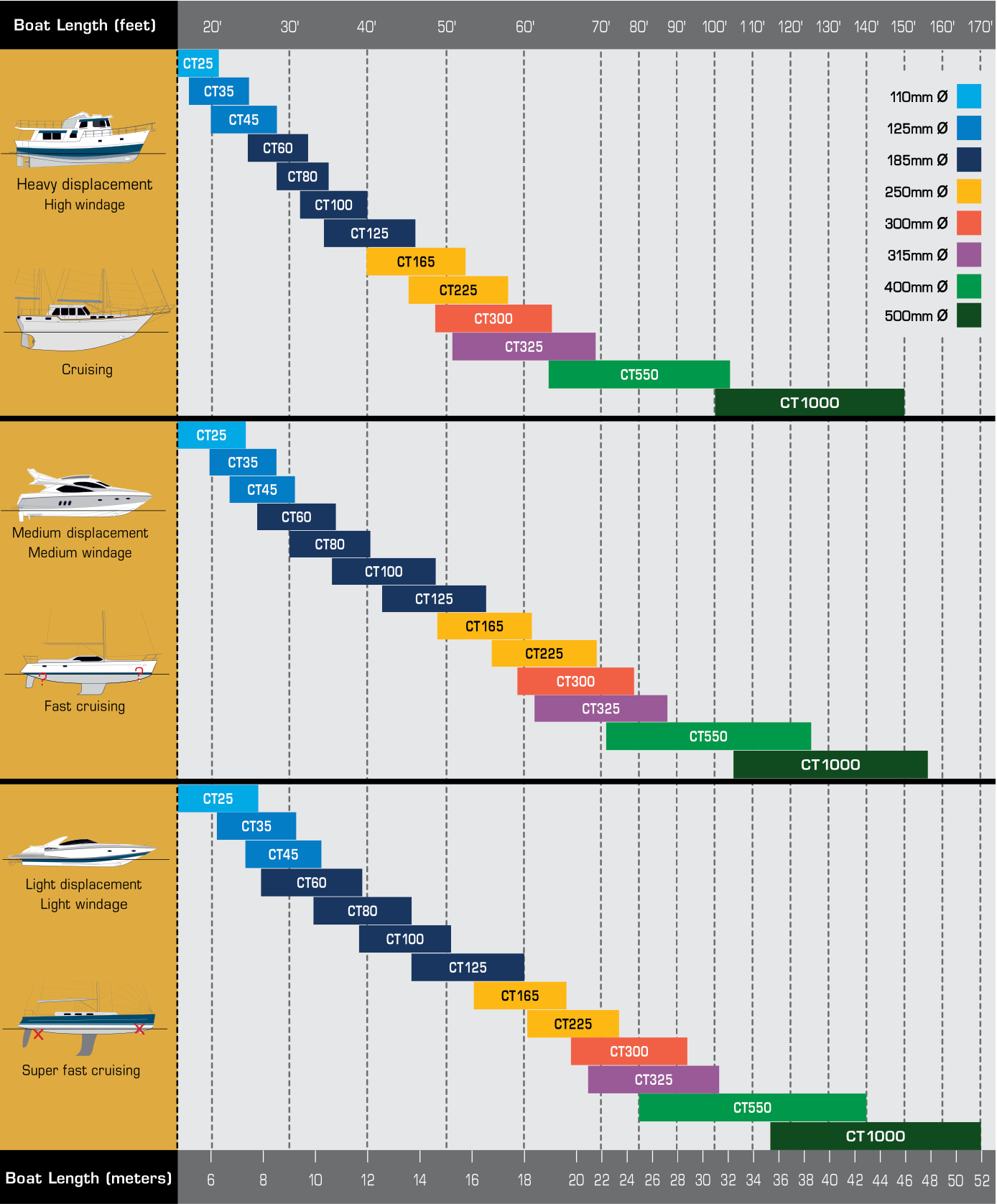

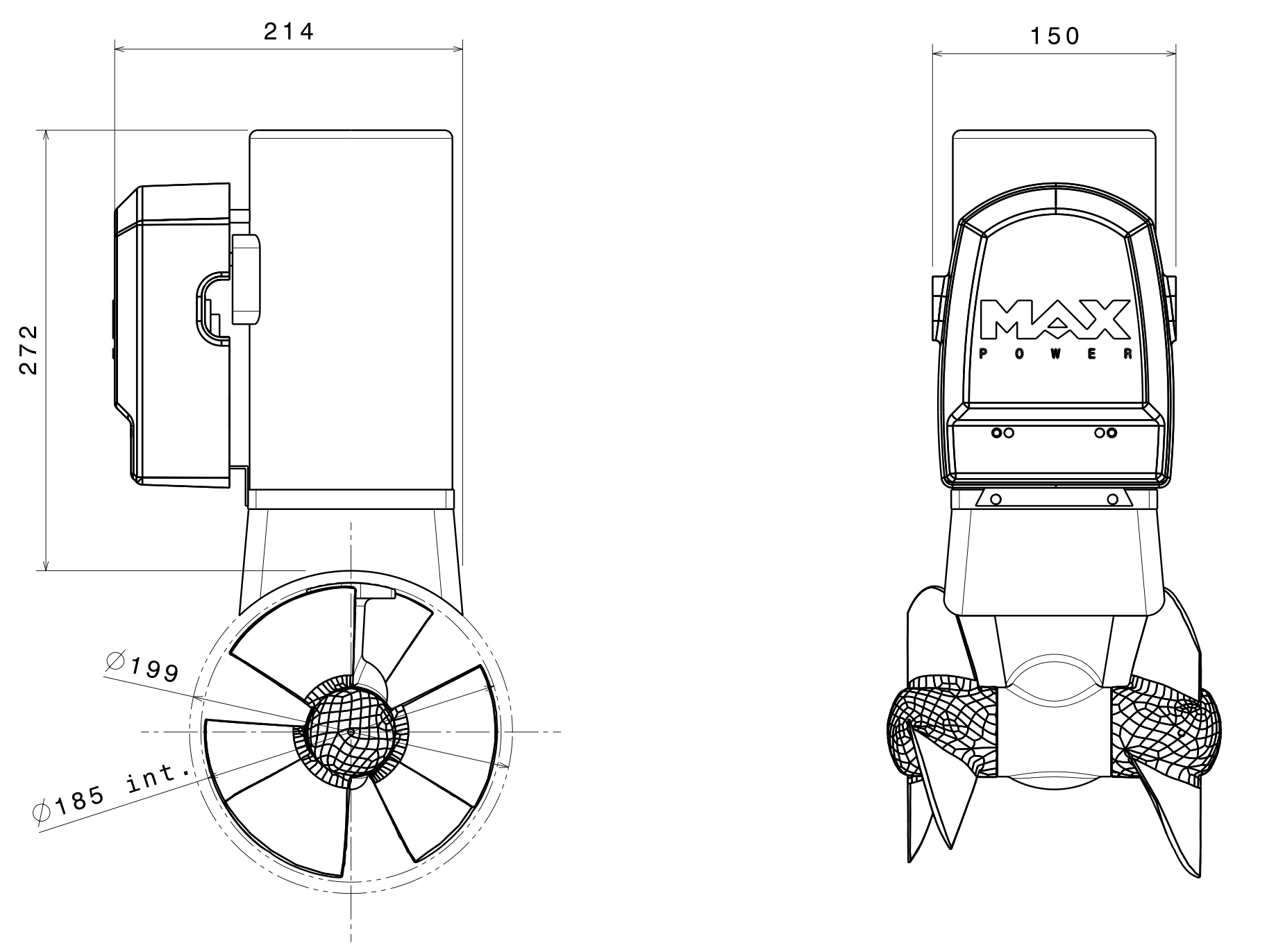

The CT80 electric tunnel thrusters are an innovative, composite drive leg design, with a single (Mono) 6 blade propeller, integrating all the unique features common to the Max Power electric tunnel thruster range. With its 185mm tunnel diameter and thrust rating up to 65/143 (kg/lbs) on the 12V model, or 80/176 (kg/lbs) on the 24V model. CT80 is recommend for boats ranging 28' to 35'.
The CT80, like all Max Power electric tunnel thrusters, is maintenance free, benefits from a long lifespan and integrates all the unique features of this range
Features
- Patented composite drive legs that are pre-filled with oil and then sealed for life for zero maintenance
- Corrosion free composite drive legs eliminate the need for anodes and offer high manufacturing tolerances
- Case hardened spiro-conical gears guarantee a silent, smooth operation, and a long life span
- High efficiency purpose built DCmotors ensuring outstanding performance and long runtime ratings
- Stainless steel protection caps secure the seals from fishing lines
- Solid copper contact bars guarantee safe & high power connections
- Electronic control boxes for unrivalled safety features
- Safe, high-power connections
- Purpose-built DC contractors are both safe and durable
- Electric control boxes offer unique & unrivalled safety features
CT80 compatible Max Power Accessories, NOT included:
- Battery Isolator, recommended to validate your MAX Power warranty, part number 318400
- 1 x Single Joystick, part number 318202
- 1 x 160 amp Fuse Holder, part number 35017
- 1 x Compatible Fuse, 12 volt part number 35019, 24 volt part number 35021
- Fibreglass tunnel, 125mm diameter, available in lengths from 0.75 - 2.5 metres e.g. 750mm part number 42547
- Cable, available to purchase by the metre, part number 312781
