R&D Engine Mounts - Compression Mountings No. 2

Description

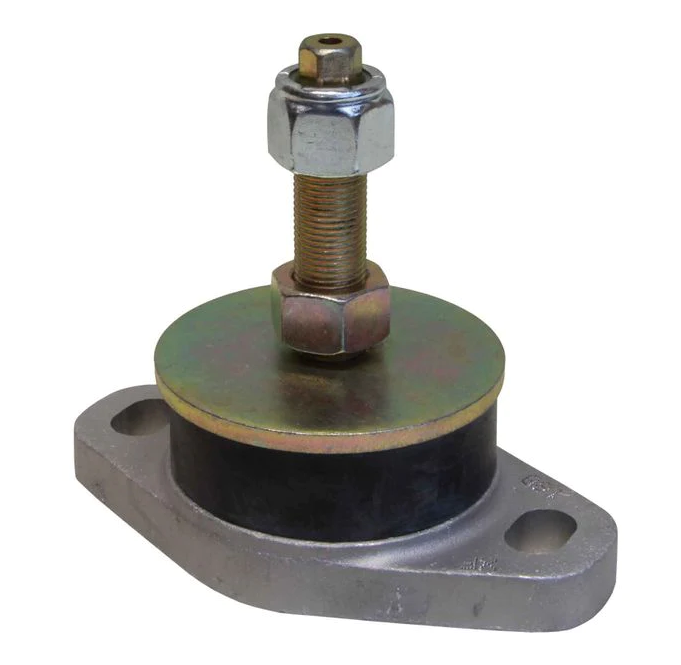

The R&D Compression Mount is a low height mounting with minimum deflection.

Part No. Capacity (lbs) Deflection (ins)
800-003 100-180 .09
800-004 160-370 .09
800-005 320-500 .09
Pre-loaded .06

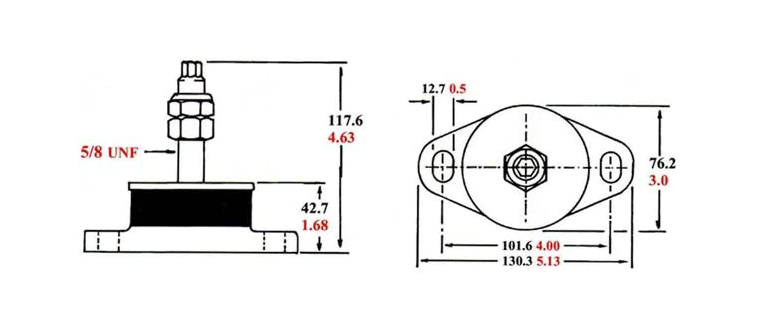

Height adjusting nut thickness: 0.55


R & D Marine Engine Mounts

R & D Marine has developed a comprehensive range of fail safe competitively priced Engine Mountings to fit all major installations.  Shear mountings are available where good isolation is required and compression mounts where there is a restriction on the available space.  Installation is made as quick and easy as possible with slotted holes and heightadjusting studs to simplify alignment.

Features:
  • Good vibration isolation
  • Fail safe design
  • Will withstand roll over test
  • Accepts propeller thrust
  • Pre-loaded
  • Slotted holdes to assist alignment
  • Height adjusting to simplify alignment
  • Fast installation time



Product Name Part Number Stock Price Qty
No. 2 Mount 180,370,500 lbs 5/8" UNF Capacity- 45-82kg 800-003 In Stock $137.24
No. 2 Mount 180,370,500 lbs 5/8" UNF Capacity- 73-168kg 800-004 Out of stock $137.24
No. 2 Mount 180,370,500 lbs 5/8" UNF Capacity- 145-227kg 800-005 In Stock $137.24
