Scot Pump

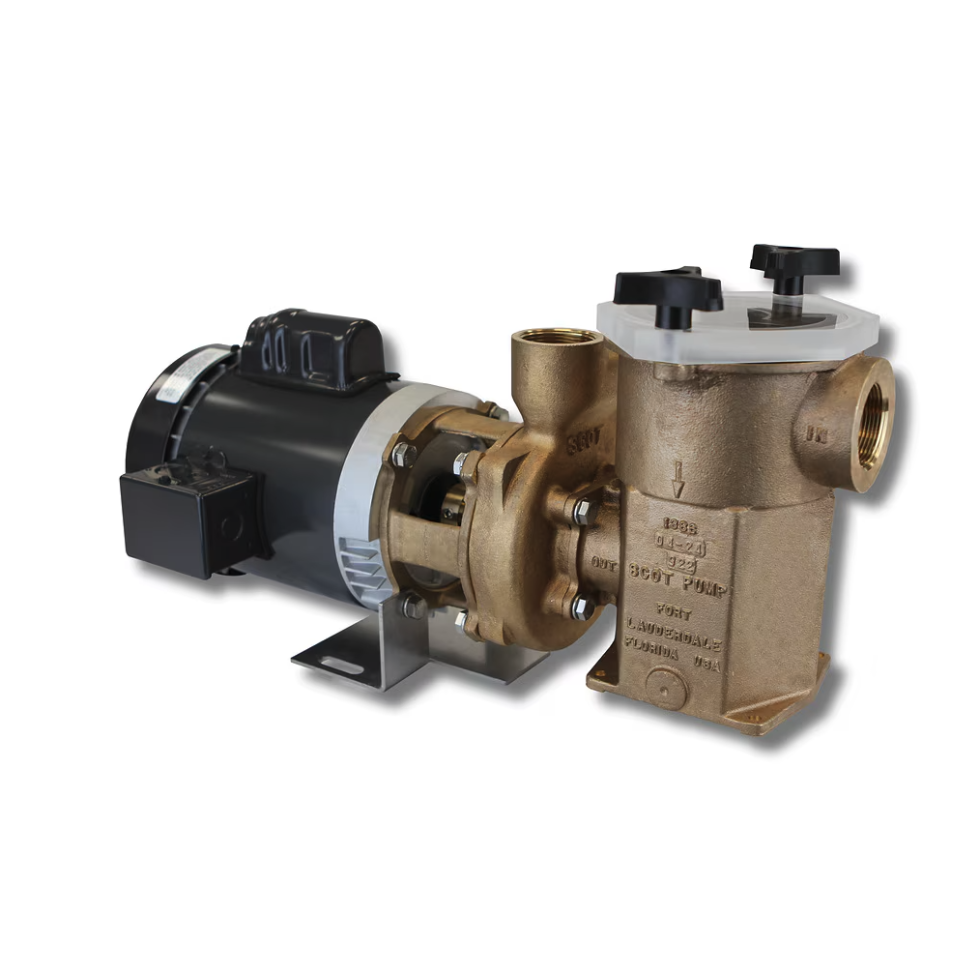

Scot Pump (48377 ) Marine Self-Priming Centrifugal Pump (3/4hp | 1.5” x 1.5” bolts to existing strainer)
Quantity:
48377 Spec Sheet
SCOT PUMP - 48377 w/o Strainer - Marine Self-Priming Centrifugal Pumps
Scot Pump manufactures End Suction All Bronze Centrifugal pumps for seawater applications in the Marine market. These products are made from the highest quality castings and components to provide years of trouble-free service. They are rugged, heavy-duty, simple designs for easy maintenance. Scot has produced pumps for the US Navy and Coast Guard in Titanium, copper-nickel, Inconel, Monel, and bronze alloys 903, 922, 954, and 958. Motor p/n: 113.005.116E.
| Feature | Specification |
|---|---|
| Self-Priming Capability | Up to 7 Feet |
| Suction Size | 1 1/2" |
| Discharge Size | 1 1/2" |
| Poles | 2 Pole |
| Frequency | 50-60 Hz |
| Speed | 2900-3450 RPM |
| Application | Air Conditioning | Refrigeration |
Raw Water Intake, Bilge/Ballast, Fire Fighting/Wash-down |
Max Flow: 100 GPM | Max. Head: 100ft |
| Technical Data | NEMA 50/ 60 Hz JM Frames | TEFC Motor is Standard | NPT Connections | Marine Bronze case, Impeller, and Adapter |
