SEALAND DTM04 Tank Monitor Systems DTM04  22" Probes  (No Vent) (313604002)

Dometic Sanitation

SEALAND DTM04 Tank Monitor Systems DTM04 22" Probes (No Vent) (313604002)

Sale price$1,199.84

Tax included

SKU: 360604002
Quantity:
In stock

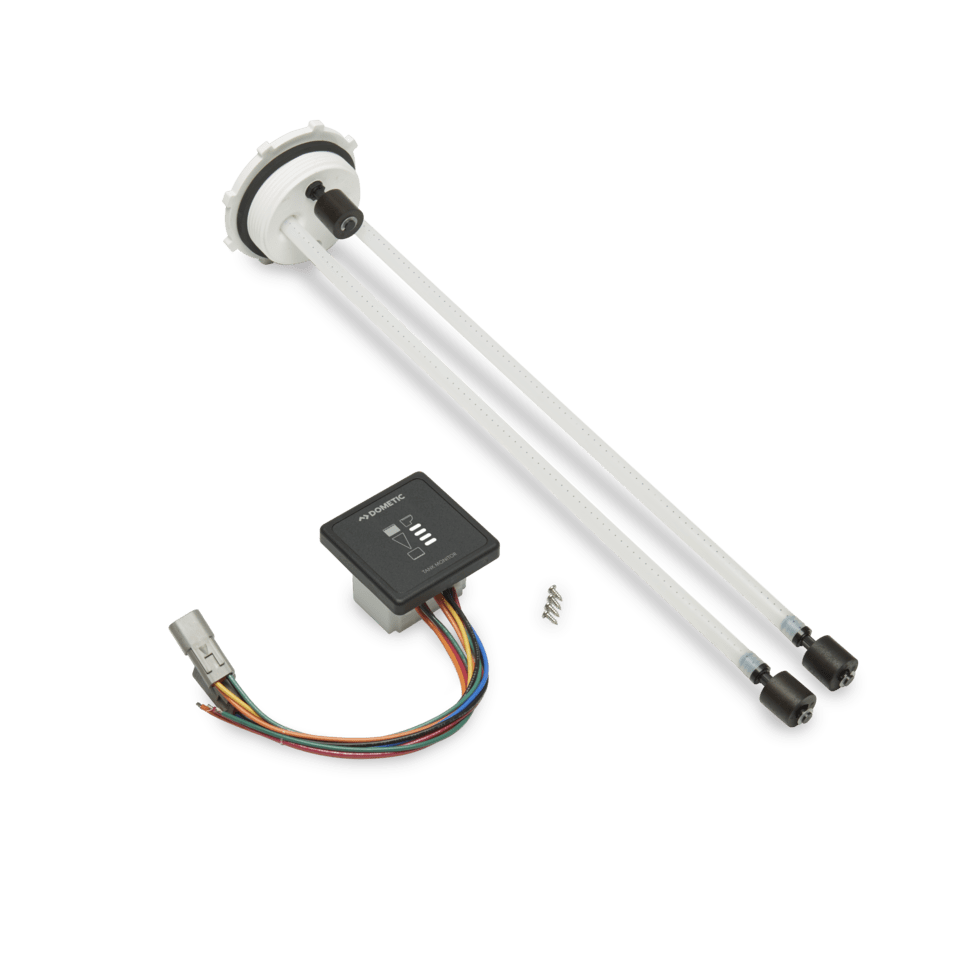

  • SeaLand DTM04 tank monitor system
  • Includes DTM04 waste tank monitor panel and 22 in. non-vented tank probe cap
  • Monitors the fluid levels of 1 waste tank
  • For 12 volt or 24 volt DC operation
  • Installs in Dometic SeaLand tanks or any rigid tank with 3 in. FNPT opening
  • Non-vented cap
  • 22 in. version
  • Patented 3 probe holding tank cap provides tank level readings to the tank monitor panel
  • Reliable probe system is designed to prevent false readings

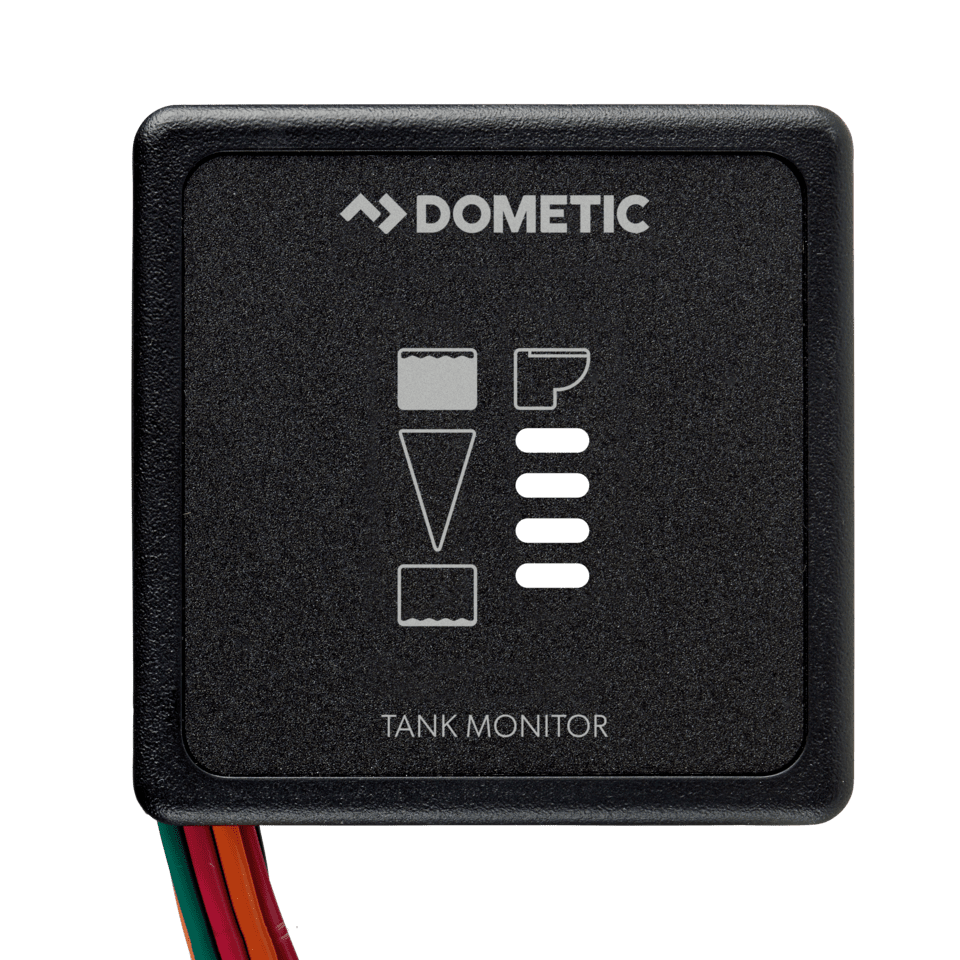

  • 4 illuminated and color coded levels of empty, low, mid and full
  • Panel only displays one level at a time to eliminate confusion and save battery power
  • Continuous illumination to indicate system power
  • Optional shut down relay connects to circuit board to shut down toilet system when waste tank is full
  • 0.008A electrical current draw @ 12 volts DC
  • 0.145A electrical current draw @ 12 volts DC if used with optional shut down relay
  • 0.004A electrical current draw @ 24 volts DC
  • 0.090A electrical current draw @ 24 volts DC if used with optional shut down relay
  • 3 1/4 in. x 3 1/4 in. panel dimensions
  • Panel requires 2 in. minimum clearance behind panel wall
  • Use P/N 307230272 holding tank flange kit if tank does not have a 3 in. FNPT tank access port
  • Optional shut down relay 385311579 for 12 volt DC
  • Optional shut down relay 385311580 for 24 volt DC
  • Replaces Sealand 313600114, 313604002
