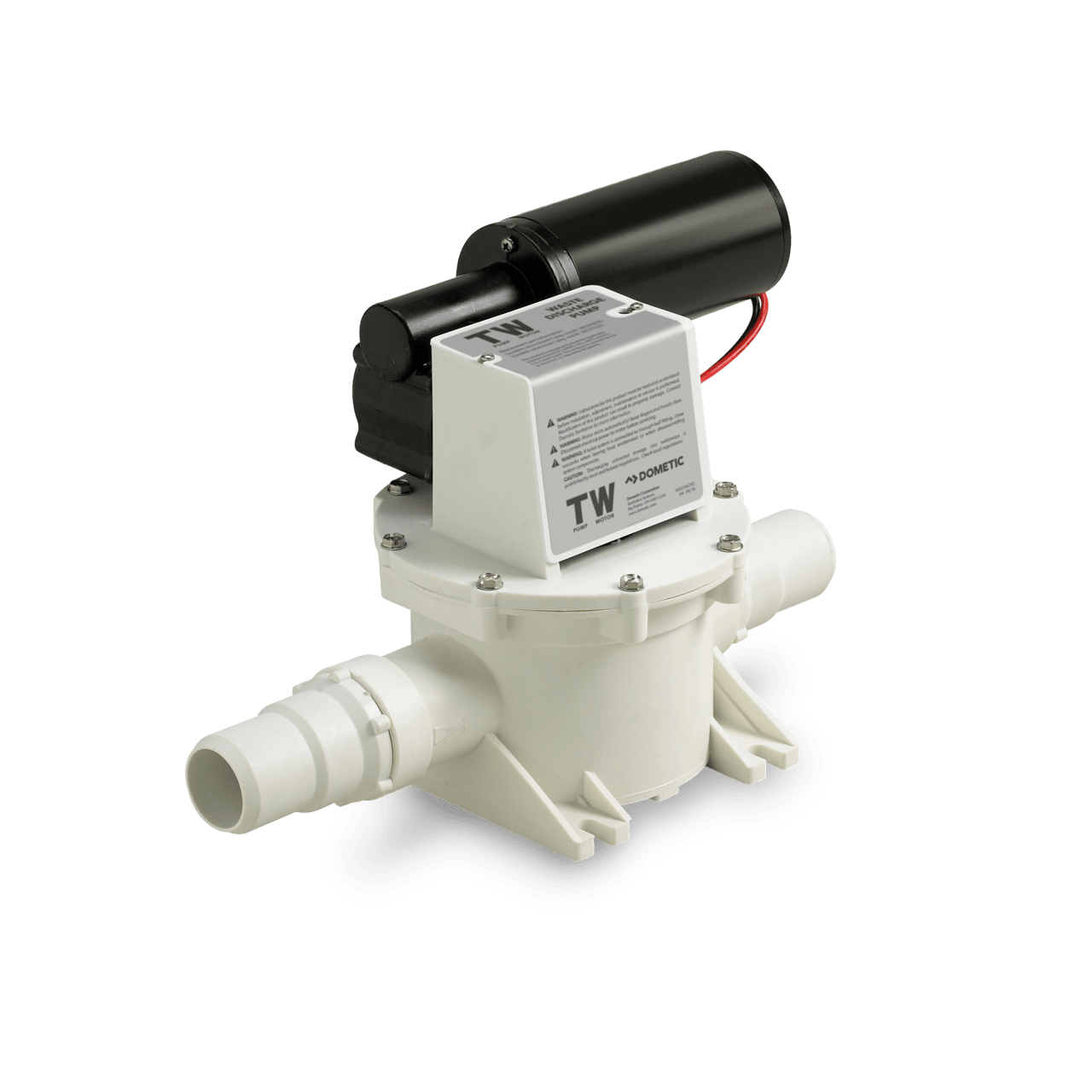

DOMETIC TW24 T Series Discharge Pump (24V)
TW24 Manual | DTW Waste Manual | TW Series Leaflet
Dometic DTW waste discharge pumps are based on a unique bellows design that offers a longer life than competitor models. For premium tank discharge performance, SeaLand T series pumps provide unsurpassed quality and reliability.
Unlike impeller-type macerator pumps, the bellow-style T pump can run dry without threat of damage. Drawing only 6amps at 12Vdc. In waters where overboard discharge of a waste holding tank is permitted, the T pump integrates with Dometic Tank Discharge (DTD) control systems* for completely automated holding tank discharge.
Key Features:
-
Ultra-quiet operation
-
12V or 24V DC power
-
Glass-filled polypropylene pump body
-
Long-lasting bellows design
-
Runs dry without damage (prevents motor burn-up)
-
Handles liquids and solids
-
Thermally protected motor
-
Produces 300 gph (1136 lph) flow rate
-
Self-priming to 10 feet (3.3 m) of water
