Vitrifrigo Drawer Fridge / Freezer D30A HP (White)
Manual D20A / D30A Series
The D30A HP White Fridge-Freezer by Vitrifrigo, a compact drawer model from the Special Installation series, is designed to ensure high performance even in reduced spaces.
Thanks to the NextGen R600a compressor, this model is 3 kg lighter than traditional models, is silent and low vibration, and ensures high performance and optimised energy consumption. Models equipped with this compressor are identified by the HP (High Performance) acronym.
The D30A HP is an All in one model, capable of quickly switching from refrigerator mode to freezer mode (and vice versa).
It is equipped with an advanced digital thermostat, which allows precise temperature setting and optimises the operation of the compressor, ensuring the best balance between efficiency and performance.
Among the advanced functions:
• Night Mode, to reduce noise during nighttime hours;
• Freezer Mode, to quickly select the freezer mode according to the user’s needs.
The system is designed to guarantee efficiency in any climatic condition, in compliance with international climate classes:
• T Class (16/43°C): the tropical class ensures full operation even in very hot environments, up to 43°C;
• ST Class (16/38°C): guarantees reliable performance up to 38°C.
Made with components specifically designed for automotive applications, the D30A HP is ideal for campers, recreational vehicles, yachts and customised installations.
The remote motor unit, which can be installed up to 1.5 meters away, allows more internal space and increases usable volume.

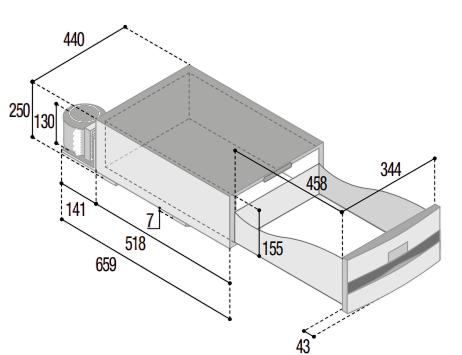

The total capacity of 30 litres can accommodate bottles up to 155 mm high, thanks also to the practical removable container.
The model is also available in Black or Sport Grey.
Based on commercial agreements, it is also possible to customise the door colour with any RAL shade, allowing perfect integration with the decor.

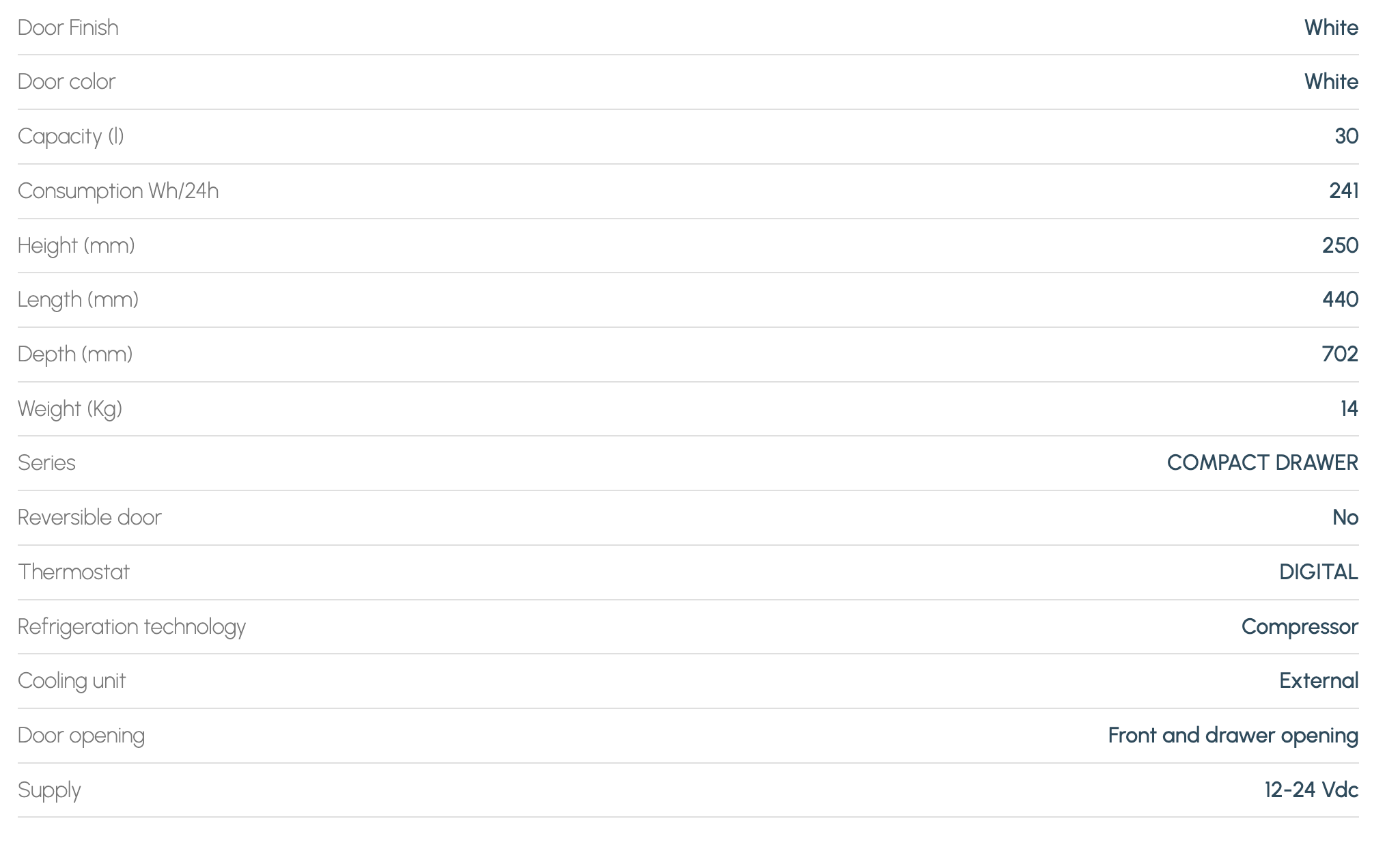

| Door Finish | White |
|---|---|
| Door color | White |
| Capacity (l) | 30 |
| Consumption Wh/24h | 241 |
| Height (mm) | 250 |
| Length (mm) | 440 |
| Depth (mm) | 702 |
| Weight (Kg) | 14 |
| Series | COMPACT DRAWER |
| Reversible door | No |
| Thermostat | DIGITAL |
| Refrigeration technology | Compressor |
| Cooling unit | External |
| Door opening | Front and drawer opening |
| Supply | 12-24 Vdc |
