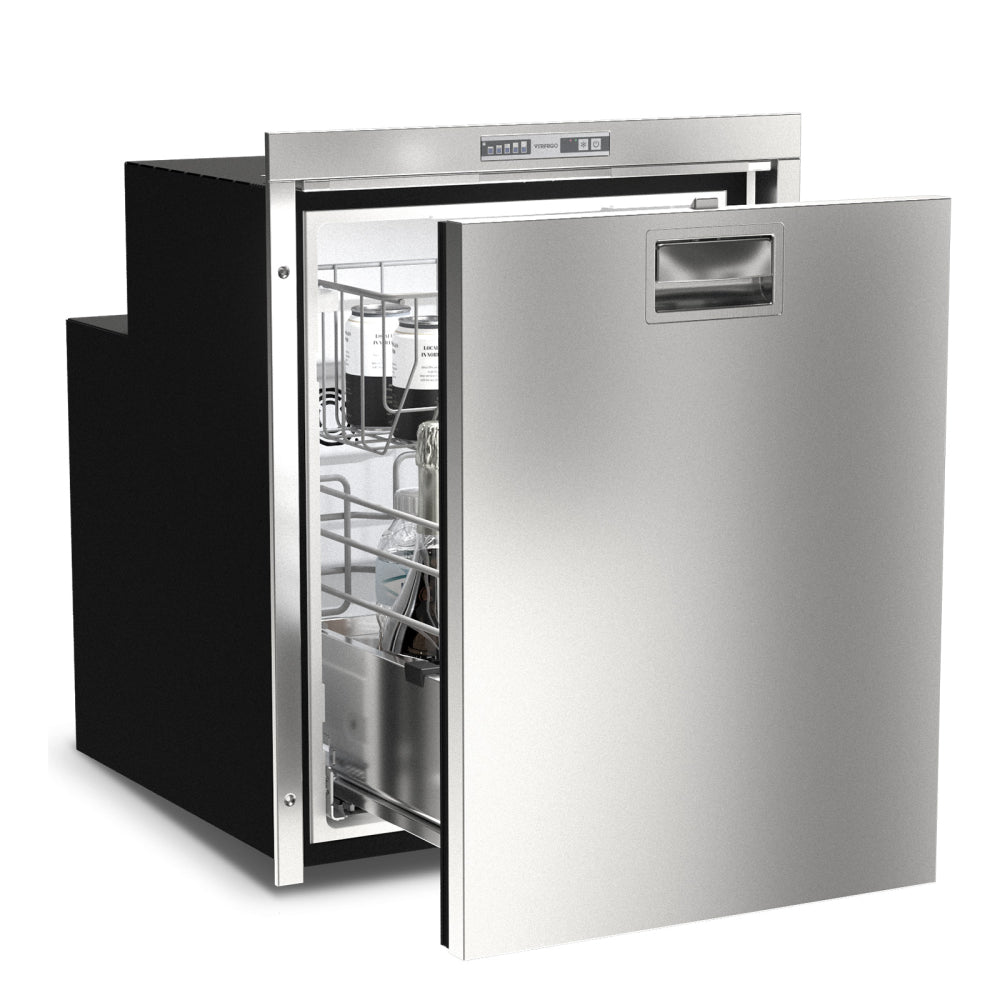

Vitrifrigo Stainless Steel Drawer Fridge, DW90i OCX2 DRINKS Series (DC)
Manual
The stainless steel drawer refrigerator DW90i OCX2 DRINKS has been designed to offer maximum functionality and optimal beverage management.
The new digital thermostat allows you to set the temperature from 9.0°C to –2.0°C.
Beverage placement is simplified by a sliding upper basket with separator, designed to accommodate up to 3 bottles of 2 litres. The internal area is fully optimised for versatile space management:
• Front part of the drawer: up to 3 bottles, max height 340 mm
• Rear part of the drawer: bottles and cans up to 280 mm
• Removable upper basket: bottles and cans up to 160 mm
By removing the upper basket, the entire volume of the refrigerator can be used.
This model uses a R600a gas compressor, known for its energy efficiency and reduced consumption.
It is also equipped with a ventilated evaporator, which ensures constant air circulation and uniform temperature inside the compartment.
The refrigerator integrates an internal LED system that provides strong illumination with minimal consumption.
The door position – flush or external – can be adjusted thanks to the special stainless steel single fixing profile, supplied as standard.
The profile is equipped with slots that improve ventilation and increase the efficiency of the refrigeration system.
The Steelock handle includes a device that activates the Vent Position function, useful for keeping the door ajar during periods of non-use, preventing mould and unpleasant odours.
| Door Finish | Stainless steel |
|---|---|
| Door colour | Stainless Steel |
| Capacity (l) | 90 |
| Consumption Wh/24h | 470 |
| Height (mm) | 665 |
| Length (mm) | 533 |
| Depth (mm) | 573 |
| Weight (Kg) | 30 |
| Series | DW DRINKS |
| Reversible door | No |
| Thermostat | DIGITAL |
| Refrigeration technology | Compressor |
| Cooling unit | Internal |
| Door opening | Drawer opening |
| Supply | 12-24 Vdc |
