MAX POWER Amps Fuses & Fuse Holders
Amps Fuse Options
Genuine Max Power Fuses are suitable for both Max Power electric tunnel and retractable bow thrusters, Max Power offer a range of calibrated fuses specifically selected by model and tested to offer an increased level of protection over standard ANL fuses.
Max Power fuses match the requirements of each thruster system by taking the specific blow curve for each fuse into account.
Max Power Advisory:
Use only Max Power original fuses for a proper installation.
Max Power do not cover warranty issues for installations that do not contain genuine original parts. (using non-genuine parts may invalidate your warranty)
Note: Please check you have the correct fuse/fuse holder selected for your thruster with the table below
Max Power | Description | Thruster Model | Voltage | Amps |
---|---|---|---|---|

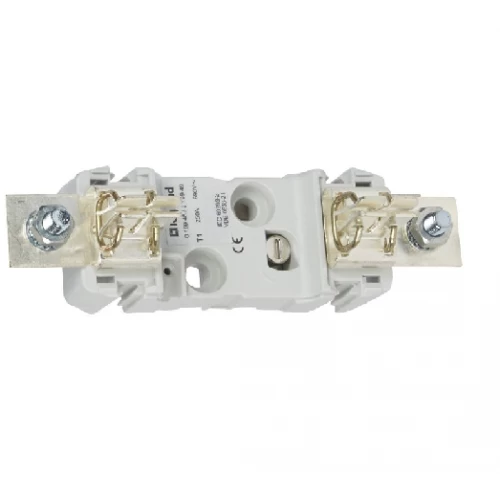

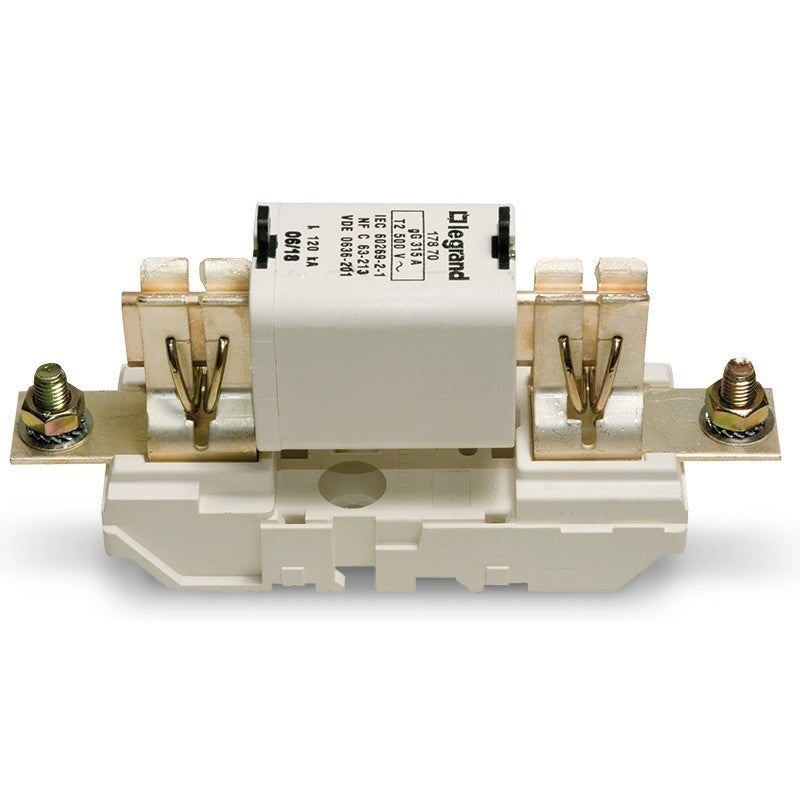

35017 | Fuse holder | CT35 / 45 / 60 / 80 / 125 | 12V | 24V | 125 | 160 | 200A |
35018 | Fuse holder | CT100 / 225 | 12V | 24V | 315 | 250A |
35019 | Fuse | CT60 | 12V | 160A |
35020 | Fuse | CT80 | 12V | 200A |
35021 | Fuse | CT 25 / 35 / 45 / 60(24V) | 12V | 125A |
35022 | Fuse | CT100 | 12V | 315A |
35027 | Fuse | CT225 | 24V | 250A |
